| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,089 pcs
|
20089 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,246 pcs
|
4246 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request | |
|
2,584 pcs
|
2584 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
1,531 pcs
|
1531 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
146 pcs
|
146 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Data Rate (Max) | |
| Lead Spacing | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Signal Conditioning | |
| Supplier Device Package | |
| Type | |
| Voltage |
The TUSB542RWQR from Texas Instruments is a versatile USB redriver and 2:1 multiplexer supporting USB 3.1 Gen1 (5Gbps) speeds, specifically designed for systems utilizing USB Type-C connectors. This device enhances signal integrity by incorporating receiver equalization and transmitter de-emphasis, crucial for overcoming channel degradation and maintaining performance over various transmission lines.
Key features include selectable equalization up to 9dB and output de-emphasis up to 6dB, along with integrated termination and an RX-detect function. It operates on a single 1.8V supply with a wide industrial temperature range of -40°C to 85°C. The TUSB542RWQR supports USB Type-C DFP, UFP, or DRP ports and can be controlled via a SEL pin for muxing signals.
Packaged in an 18-X2QFN (RWQ) with surface mount, this redriver is suitable for compact designs. Its ultra-low power architecture makes it an efficient choice for power-sensitive applications. The device offers signal conditioning and switching capabilities essential for modern USB-C implementations, ensuring robust connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.79 | $1.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TUSB542RWQR supports a maximum data rate of 5Gbps.
The TUSB542RWQR supports USB 3.1 Gen1 and USB Type-C interfaces.
The TUSB542RWQR operates at a single supply voltage of 1.8V.
The TUSB542RWQR has an operating temperature range of -40°C to 85°C.

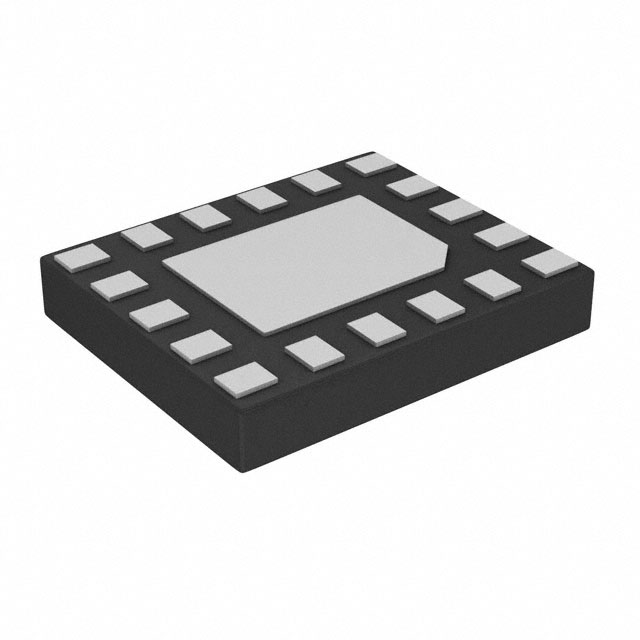

The TUSB542RWQR is available in an 18-X2QFN (RWQ) package.
Yes, the TUSB542RWQR offers input equalization up to 9dB and output de-emphasis up to 6dB.
