| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45,200 pcs
|
45200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15,193 pcs
|
15193 pcs | On Request | 1 | On Request | On Request | 1519+ | On Request | On Request | |
|
8,434 pcs
|
8434 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,470 pcs
|
1470 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control | |
| Current Consumption | |
| Function | |
| Interface | |
| Mounting Type | |
| Operating Temperature Range | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |
The TUSB320RWBR from Texas Instruments is a specialized interface IC designed for USB Type-C port control. It integrates the necessary configuration channel (CC) logic to manage USB Type-C ecosystems, enabling features like port attach/detach detection, cable orientation, role detection, and Type-C current mode control.
This device operates within a supply voltage range of 2.7V to 5V and is rated for an industrial temperature range of -40°C to 85°C. It supports various roles including Downstream Facing Port (DFP), Upstream Facing Port (UFP), and Dual Role Port (DRP). The TUSB320RWBR can advertise up to 3A of current and offers control via I2C or GPIO, with role configuration managed through I2C.

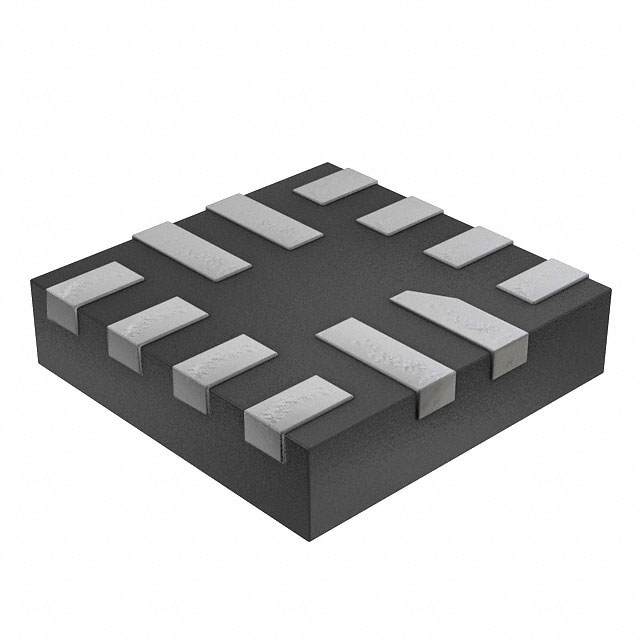

Packaged in a 12-X2QFN (1.6x1.6 mm) surface mount configuration, the TUSB320RWBR is suitable for applications requiring robust USB Type-C power and data role management. Its low current consumption makes it an efficient choice for various portable and embedded systems.
The TUSB320RWBR is backward compatible with USB Type-C specification 1.0 and supports specification 1.1. It provides essential functions for USB Type-C port implementation, including VBUS detection and cable orientation detection, simplifying the design of USB-C enabled devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.89 | $0.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TUSB320RWBR operates from a supply voltage of 2.7V to 5V.
The TUSB320RWBR is available in a 12-X2QFN package.
The TUSB320RWBR has an operating temperature range of -40°C to 85°C.
The TUSB320RWBR can be controlled via I2C or GPIO.
The TUSB320RWBR is designed for USB applications, specifically for Type-C port control.
The TUSB320RWBR can support DRP, Sink, and Source power roles.
The Moisture Sensitivity Level (MSL) for the TUSB320RWBR is 1.
