| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
125 pcs
|
125 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Configuration | |
| Features | |
| Mounting Type | |
| Multiplexer | |
| Number of Channels | |
| Operating Temperature | |
| Storage Temperature | |
| Supplier Device Package | |
| Switch Circuit | |
| Tape & Reel | |
| Voltage |

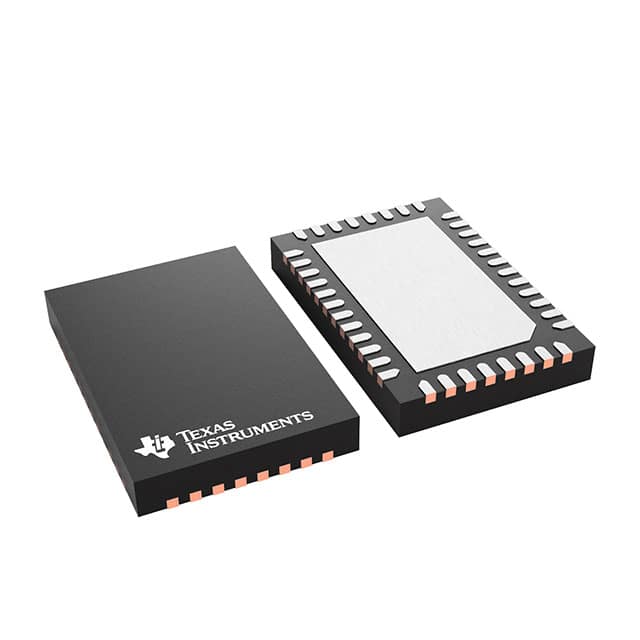

The TUSB1142IRNQR from Texas Instruments is a high-performance USB 3.2 adaptive linear redriver designed for USB-C applications. It provides a 2:1 multiplexer or 1:2 demultiplexer function, supporting both USB 3.2 Gen2 (10Gbps) and Gen1 (5Gbps) data rates.
This redriver features 16 equalization settings up to 12dB at 5GHz, offering flexibility with choices between adaptive or fixed receiver equalization and linear or limited redriver for the system-facing port. It operates from a single 3.3V supply and includes advanced USB power management, with typical active power consumption of 550mW.
Configuration can be achieved through I2C or pin-strap, with selectable I2C levels of 1.8V or 3.3V. The device is housed in a 40-WQFN exposed pad package and operates within a temperature range of -40°C to 85°C. It is suitable for applications requiring robust USB signal integrity and switching capabilities.
The TUSB1142IRNQR is intended to be placed between a Host and a USB-C receptacle or between a USB device and a USB-C receptacle, ensuring reliable high-speed data transmission.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.14 | $3.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
It supports USB 3.2 Gen2 (10Gbps) and Gen1 (5Gbps).
It operates from a single 3.3V supply.
The package is a 40-WQFN Exposed Pad.
Yes, it is RoHS3 Compliant.
The MSL is Level 1 Unlimited.
