Mfr Part #:

TUNS700F48

Mfr Name: Cosel

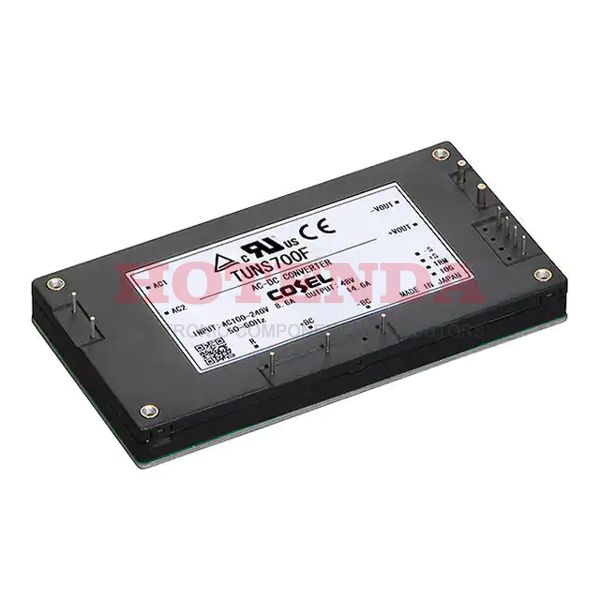

The Cosel TUNS700F48 is a 700W AC DC converter with a 48V output voltage and a wide 85-264 VAC input range. It features universal input and through-hole mounting.

Stock on Request

TUNS700F48 Description

Short technical summary and product information.

The Cosel TUNS700F48 is an enclosed AC DC power module designed for ITE (Commercial) applications. It operates with a universal input voltage range of 85 to 264 VAC and provides a stable 48V output at up to 14.6A, delivering a total of 700W.

This converter boasts high efficiency, reaching up to 90% at 200V AC input. It is designed with built-in overcurrent, overvoltage, and thermal protection circuits for reliability. The unit complies with IEC61000-3-2 class A for harmonic attenuation.

Featuring through-hole mounting, the TUNS700F48 is suitable for various board-level integration needs. Its operating temperature range is -40°C to 100°C with derating, ensuring performance in diverse environmental conditions. Safety approvals include CE, CSA, cURus, TUV, and UL, adhering to standards like 60950-1 and 62368-1.

TUNS700F48 Quick Information

Product Type: AC DC Converter

Series: TUNS

Canonical Name: Cosel TUNS700F48 AC/DC Power Module

Subcategory: AC DC Converters

TUNS700F48 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TUNS700F48 Features

700W AC DC power module with 48V output.
Universal input voltage range of 85-264 VAC.
High efficiency up to 90% at 200V AC.
Through-hole mounting for easy integration.
Wide operating temperature from -40°C to 100°C.

TUNS700F48 Applications

Suitable for ITE (Commercial) applications.
Designed for board-level power conversion.
Robust protection circuits for reliability.
Complies with harmonic distortion standards.

TUNS700F48 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the TUNS700F48?

85-264 VAC.

What is the package type of the TUNS700F48?

7-DIP Module.

What is the operating temperature range?

-40°C to 100°C (with derating).

What is the output voltage?

48V.

What is the output current rating?

14.6A.

What is the typical efficiency?

90% at 200VAC input.

What safety approvals does the TUNS700F48 have?

CE, CSA, cURus, TUV, UL.

Category	AC DC Converters
Manufacturer Name	Cosel
Applications	ITE (Commercial)
Approval Agency	CE, CSA, cURus, TUV, UL
Current	14.6A
Efficiency	90%
Features	Universal Input
Height	12.7mm (0.50")
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature	-40°C ~ 100°C
Package / Case	7-DIP Module
Power (Watts)	700 W
Standard Number	60950-1; 62368-1
Type	Enclosed
Voltage	48V
Width	61.5mm (2.42")
