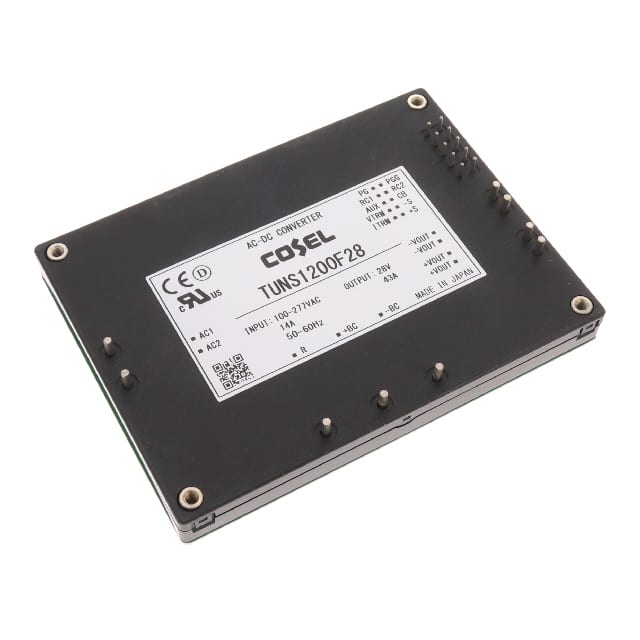

The Cosel TUNS1200F28 is an enclosed AC/DC power module designed for ITE (Commercial) applications. It provides a single output of 28V at up to 1200W, with a universal input voltage range of 85 to 264 VAC.
This power module features through-hole mounting and a 19-DIP Module package. It operates across a wide temperature range of -40°C to 100°C with derating. Key electrical specifications include high efficiency, power factor correction, and built-in overcurrent and overvoltage protection circuits.
Compliance includes CE, CSA, cURus, TUV, and UL approvals, adhering to standards like IEC60950-1 and IEC62368-1. The TUNS1200F28 is suitable for various industrial and commercial electronic equipment designs requiring reliable power conversion.
The TUNS1200F28 has an output voltage of 28V.
The maximum output wattage for the TUNS1200F28 is 1200W.
The TUNS1200F28 accepts a universal input voltage range of 85 to 264 VAC.
The TUNS1200F28 operates from -40°C to 100°C with derating.
The TUNS1200F28 uses through-hole mounting.
The TUNS1200F28 is approved by CE, CSA, cURus, TUV, and UL.
