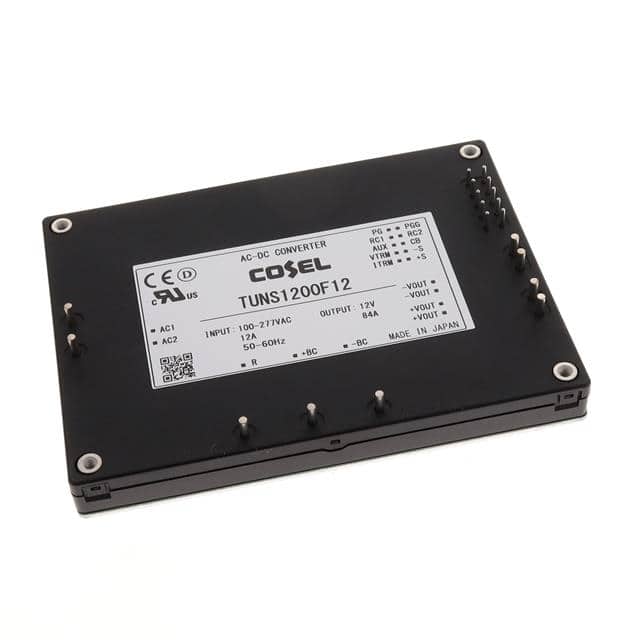

The Cosel TUNS1200F12 is a high-power AC/DC converter designed for demanding applications. It provides a stable 12V output with a maximum current of 84A, totaling 1008W of power.
This converter features a wide universal input voltage range from 85 to 305 VAC, making it suitable for global use. It is designed with adjustable output and is approved by CE, cURus, and DEMKO.
The TUNS1200F12 is suitable for ITE (Commercial) and Medical applications. It is housed in an enclosed package and utilizes a through-hole mounting type for secure installation.
Key specifications include an efficiency of 87% and an operating temperature range of -40°C to 100°C with derating. The dimensions are 117.3mm x 86.8mm x 12.7mm.
The TUNS1200F12 has an output voltage of 12V.
The maximum output current for the TUNS1200F12 is 84A.
The TUNS1200F12 has a power rating of 1008W.
The input voltage range for the TUNS1200F12 is 85 to 305 VAC.
The TUNS1200F12 operates between -40°C and 100°C with derating.
The TUNS1200F12 comes in a 19-DIP Module package.
The TUNS1200F12 is mounted using the through-hole method.
