| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Isolation | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

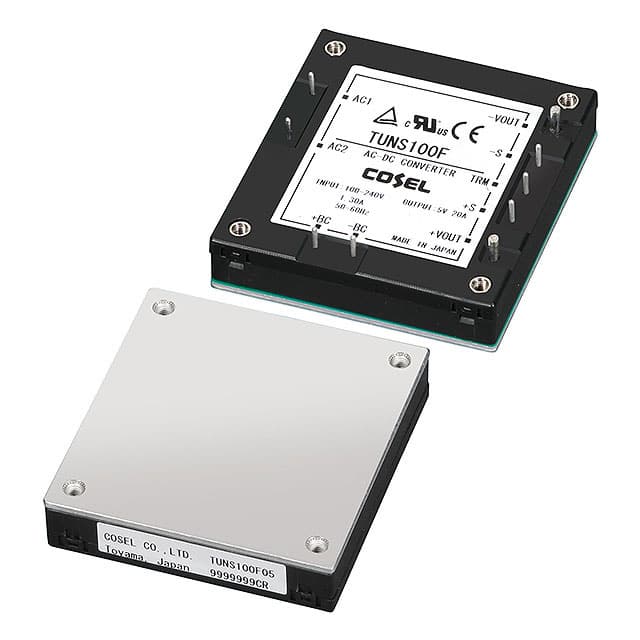

The Cosel TUNS100F05 is an AC/DC power module designed for various applications. It provides a 100W output with a 5V DC output voltage and a 20A current rating. The module accepts a universal input voltage range of 85 to 264 VAC, making it suitable for global use.
Key features include harmonic attenuation compliant with IEC61000-3-2 class A, power factor correction, and built-in overcurrent, overvoltage, and thermal protection circuits. The operating temperature range is -40°C to 100°C with derating.
This power module is housed in a 7-DIP module package and utilizes through-hole mounting. Its dimensions are 61.0mm in length, 58.4mm in width, and 12.7mm in height. The TUNS100F05 is approved by CE, CSA, cURus, TUV, and UL, and complies with safety standards like 60950-1 and 62368-1.
85 to 264 VAC.
5 VDC at 20 A, 100 W.
85% typical.
-40°C to 100°C with derating.
7-DIP through-hole module.
Yes, overcurrent protection works above 105% of rating and recovers automatically. Overvoltage protection is 6.30 to 7.00V.
3000 VAC input-to-output.
