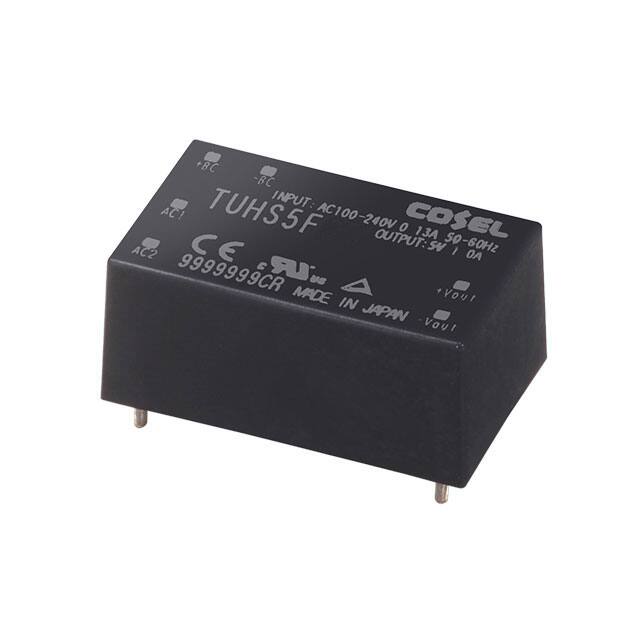

The Cosel TUHS5F05 is a compact AC-DC converter designed for PCB mounting. It provides a 5V output voltage with a maximum current of 0.6A, delivering up to 3.00W of power. This converter features a universal input voltage range of 85-264 VAC or 120-370 VDC, making it suitable for global applications.
Key electrical specifications include an efficiency of 79% at 100V AC input, line regulation of 20mV maximum, and load regulation of 40mV maximum. The ripple noise is limited to 120mVp-p under a 30-100% load condition. It incorporates overcurrent and overvoltage protection circuits for enhanced reliability.
The TUHS5F05 is designed for through-hole mounting and comes in a 6-DIP Module package. It operates within an ambient temperature range of -40°C to 85°C with derating. Safety approvals include CE and cURus, and it complies with RoHS3 standards.
85 ~ 264 VAC, 120 ~ 370 VDC.
5V.
0.6A.
3.00W.
79% at ACIN 100V.
-40°C to 85°C with derating.
6-DIP Module.
