| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Width |

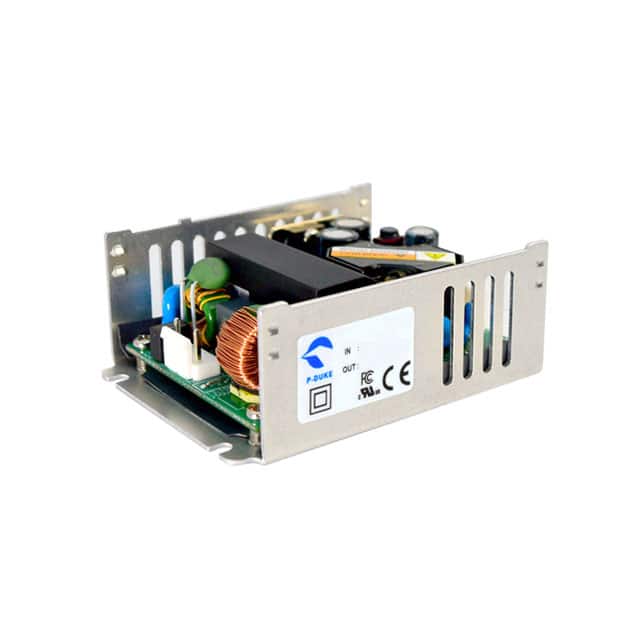

The TUD65US05C-P from P-DUKE Technology, Inc. is an open-frame AC/DC converter designed for chassis mounting. It provides a stable 5VDC output with a maximum output power of 50W and a peak output power of 65W.
This converter operates within a wide input voltage range of 85-264 VAC and offers an efficiency of 90%. It is suitable for applications requiring a 5V output and can handle a maximum output current of 10A. The operating temperature range is -40°C to 85°C with derating.
Key specifications include a 3kV voltage rating and compliance with standards such as 62368-1. The dimensions are 89.7mm in length, 60.5mm in width, and 33.3mm in height. It is designed for ITE (Commercial) applications and features universal input capability.
Environmental compliance includes RoHS3 compliance, an MSL of 1, and REACH unaffected status. The part number is TUD65US05C-P.
The output voltage is 5 VDC and the output current is 10 A.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -40°C to 85°C with derating.
The typical efficiency is 90%.
The mounting type is chassis mount and the package is open frame.
It complies with safety standard 62368-1.
