| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

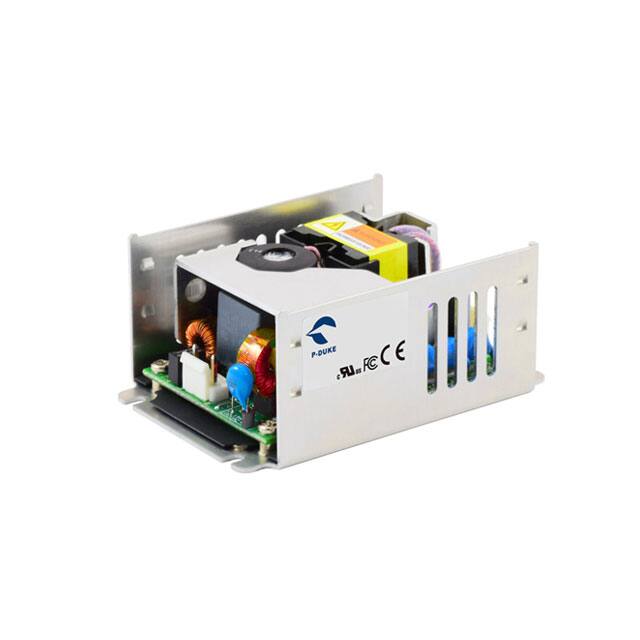

The P-DUKE TUD125US12B is an AC to DC converter designed for various applications. It operates with an AC input voltage range of 85 to 264V and provides a stable DC output voltage of 12V at up to 10.42A, delivering 100W of power (125W with forced air).
Key electrical specifications include an efficiency of 91% and features such as adjustable output, DC input capability, power factor correction (PFC), and universal input. The converter has a dielectric strength voltage of 4kV and is compliant with standard 62368-1.
This AC to DC converter is housed in an open frame package and is designed for chassis mounting. It operates within a temperature range of -40°C to 85°C with derating. The dimensions are 91.4mm x 62.0mm x 39.1mm.
Applications include ITE (Commercial) equipment. The part number is TUD125US12B from manufacturer P-DUKE Technology, Inc.
The DC output voltage is 12V.
The DC output current is 10.42A.
The power rating is 100W, or 125W with forced air.
The AC input voltage range is 85 to 264V.
The operating temperature range is -40°C to 85°C, with derating.
The dimensions are 91.4mm x 62.0mm x 39.1mm.
