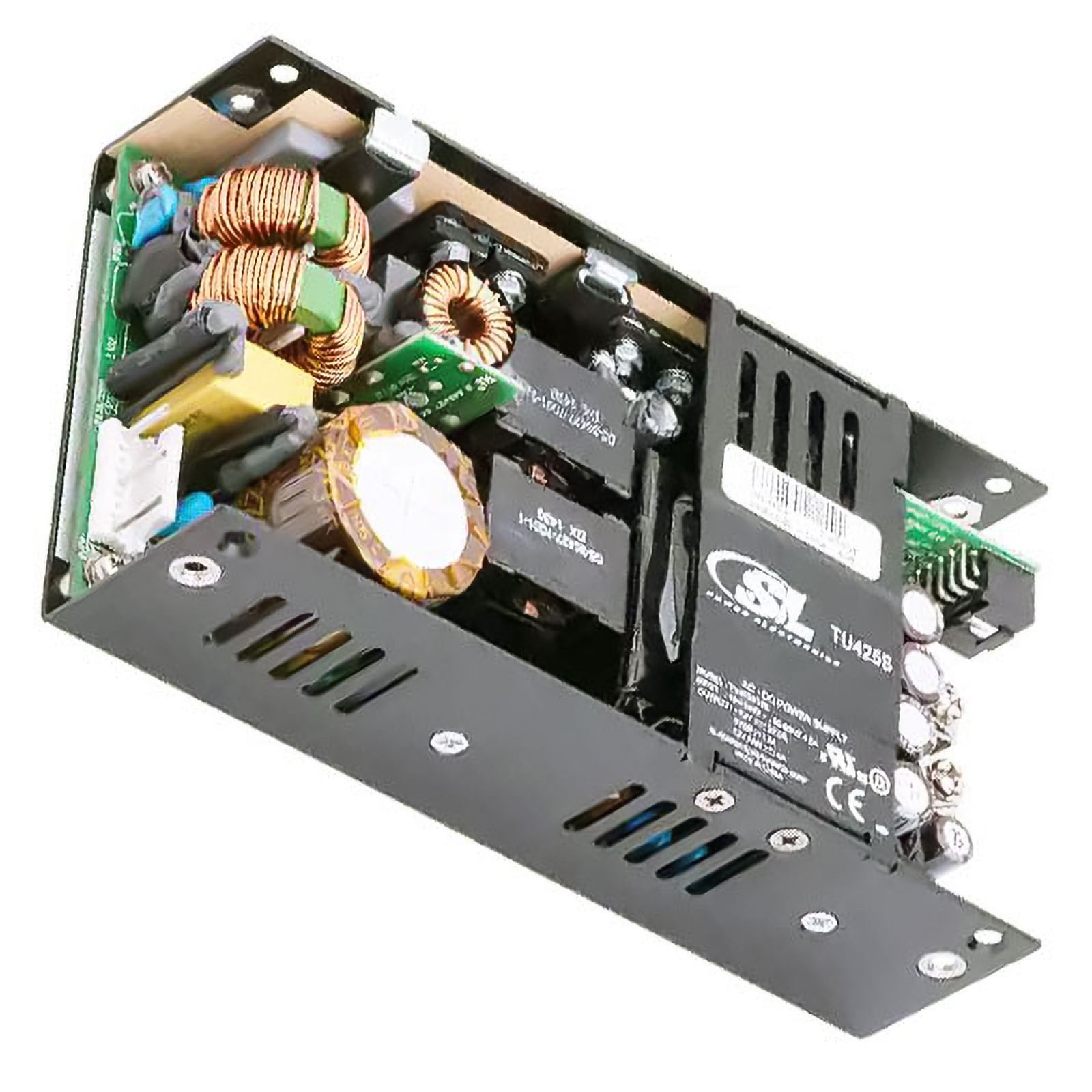

The SL Power Electronics TU425S56E is an industrial-grade AC/DC converter from the TU425 family, designed for demanding applications. This open-frame unit provides 300W of convection-cooled power, expandable to 425W with forced air cooling.
Key electrical specifications include a 56V output voltage and a universal input range of 90-264VAC. The converter boasts a high efficiency of 90% typical, contributing to reduced energy consumption and heat generation. It also features a 5V standby output and an isolated 12V fan output.
Designed for chassis mounting, the TU425S56E measures 6.20" x 3.30" x 1.62" (157.4mm x 83.8mm x 41.1mm). It operates within an ambient temperature range of -10°C to 70°C with derating and is approved by CE, cURus, and DEMKO.
This power supply is suitable for ITE (Commercial) applications and includes features like DC input capability, load sharing, remote sense, and universal input.
56V
5.1A under convection cooling, 8.4A with 200 LFM forced air.
-10°C to 70°C with derating.
90%
Yes, a 5V 2.0A standby output is provided.
157.4mm x 83.8mm x 41.1mm (6.20" x 3.30" x 1.62").
CE, cURus, DEMKO.
