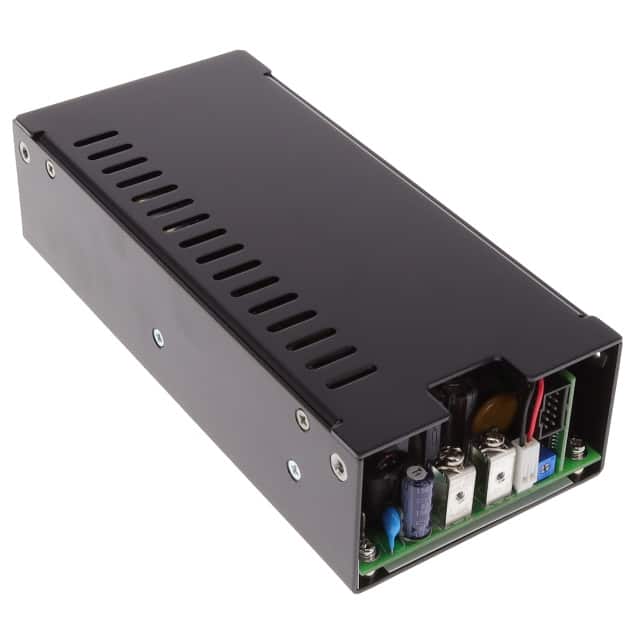

The SL Power Electronics TU425S48EF is an industrial-grade AC/DC converter from the TU425 family, delivering 403W of power with a 48V nominal output voltage. It operates with universal input (90-264VAC) and achieves a typical efficiency of 90%.
This enclosed converter is designed for chassis mounting and includes features such as adjustable output, Power Factor Correction (PFC), remote sense, and a standby output. It also provides an isolated 12V fan output. The dimensions are 157.5mm x 83.8mm x 41.1mm.
Designed for ITE (Commercial) applications, the TU425S48EF meets safety standards including CE, cURus, and DEMKO approvals. It operates within a temperature range of -10°C to 70°C with derating.
The nominal output voltage is 48V.
The operating temperature range is -10°C to 70°C with derating.
It accepts a universal input of 90-264VAC.
Typical efficiency is 90%.
Minimum isolation voltage is 3000VAC.
The unit measures 157.5mm x 83.8mm x 41.1mm (6.20" x 3.30" x 1.62").
It is approved to UL 60950-1 with CE, cURus, and DEMKO marks.
