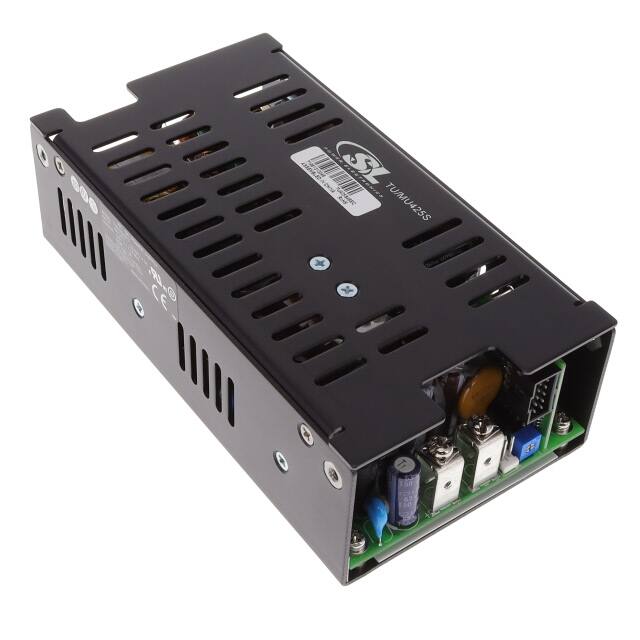

The TU425S48EC from SL Power Electronics is a versatile AC/DC converter designed for industrial applications. It provides a single 48V output with a convection-cooled power rating of 182W, which can be increased to 312W with forced air cooling.
Key electrical specifications include a universal input range of 90-264VAC, a typical efficiency of 90%, and a low ripple noise of 480mV pk-pk. The converter also features a 5V standby output and a 12V fan output. Overload protection (OCP) is set between 130%-170% of the nominal output, and overvoltage protection (OVP) ranges from 110%-130%.
Designed for robustness, the TU425S48EC operates within a temperature range of -10°C to 70°C with derating. Its dimensions are 157.5mm x 83.8mm x 41.1mm (6.20" x 3.30" x 1.62"), and it is suitable for chassis mounting. The unit is approved by CE, cURus, and DEMKO, meeting standard 60950-1.
This converter is suitable for ITE (Commercial) applications and includes features like adjustable output, Power Factor Correction (PFC), remote sense, and a standby output.
The input voltage range is 90-264VAC (universal).
The operating temperature range is -10°C to 70°C with derating.
The converter is enclosed and designed for chassis mount.
182W under convection cooling and 312W with forced air (200 LFM).
The typical efficiency is 90%.
It is certified to UL/EN/IEC 60950-1 and carries CE, cURus, and DEMKO approvals.
Yes, it includes a 5V 2A standby output and a 12V fan output (0.5A convection, 1A forced air).
