| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

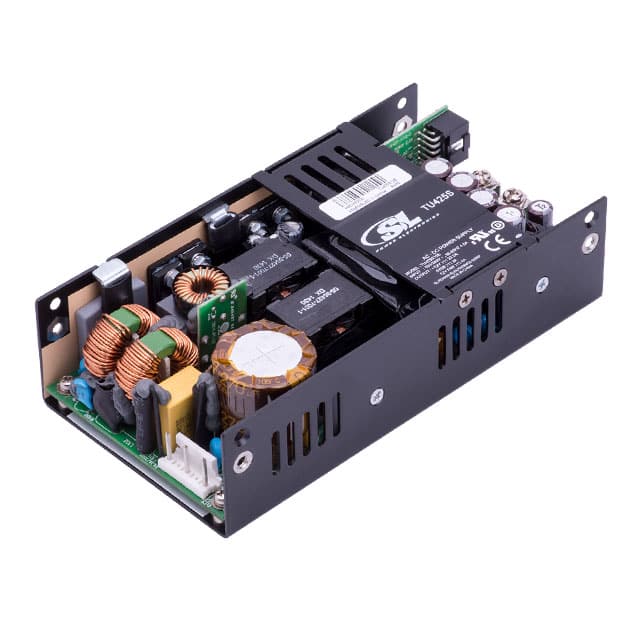

The TU425S24EF from SL Power Electronics is a single-output AC/DC converter belonging to the TU425 family. It delivers up to 403W of power with a 24V output voltage.
This industrial-grade converter operates with a universal input range of 90-264VAC and boasts a typical efficiency of 90%. Key features include remote sense, standby output, and compliance with CE, cURus, and DEMKO standards. It is suitable for ITE (Commercial) applications.
The unit is housed in an enclosed chassis mount package with dimensions of 6.20" L x 3.30" W x 1.62" H (157.5mm x 83.8mm x 41.1mm). It operates within a temperature range of -10°C to 70°C with derating.
The output voltage is 24V.
The output current is 11.9A under convection cooling and 16.8A with 200 LFM air.
The power rating is 300W with convection cooling and 425W with forced air.
The input voltage range is 90-264 VAC.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 6.20" L x 3.30" W x 1.62" H (157.5mm x 83.8mm x 41.1mm).
