| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Construction | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

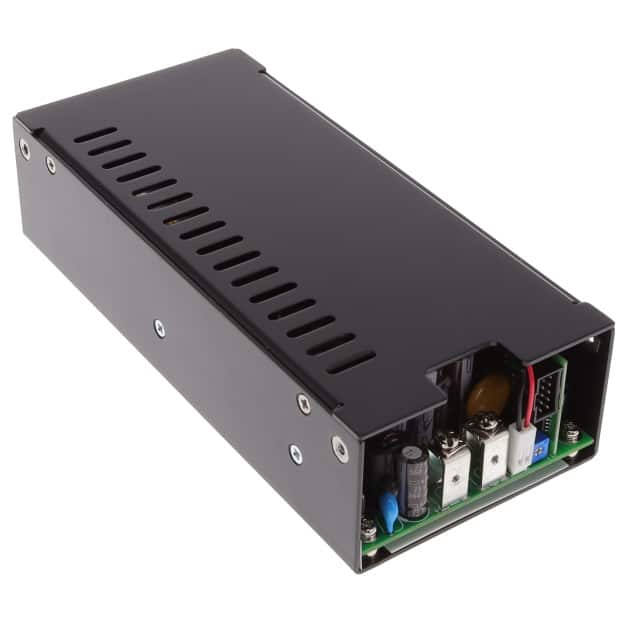

The SL Power Electronics TU425S12EF is a 425W single output AC DC converter from the TU425 family. Designed for industrial applications, it offers a universal input range of 90-264VAC and provides a stable 12V output.
Key electrical specifications include a typical efficiency of 90%, with output current capabilities of 22.0A under convection cooling and 32.2A with 200 LFM of forced air. The converter includes features such as adjustable output, Power Factor Correction (PFC), remote sense, and a 5V standby output.
This enclosed unit is designed for chassis mounting. It operates within a temperature range of -10°C to 70°C with derating and has an isolation voltage of 3kV. The TU425S12EF is approved by CE, cURus, and DEMKO, adhering to standards like 60950-1.
Additional features include an isolated 12V fan output and various signals like Inhibit, Power Fail, and DC OK. The dimensions are 6.20" x 3.30" x 1.62" (157.5mm x 83.8mm x 41.1mm).
The nominal output voltage is 12V.
The output current is 22.0A with convection cooling and 32.2A with 200 LFM of air.
The input voltage range is 90-264VAC.
The typical efficiency is 90%.
The dimensions are 6.20" L x 3.30" W x 1.62" H (157.5mm x 83.8mm x 41.1mm).
It operates from -10°C to 70°C with derating.
