| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

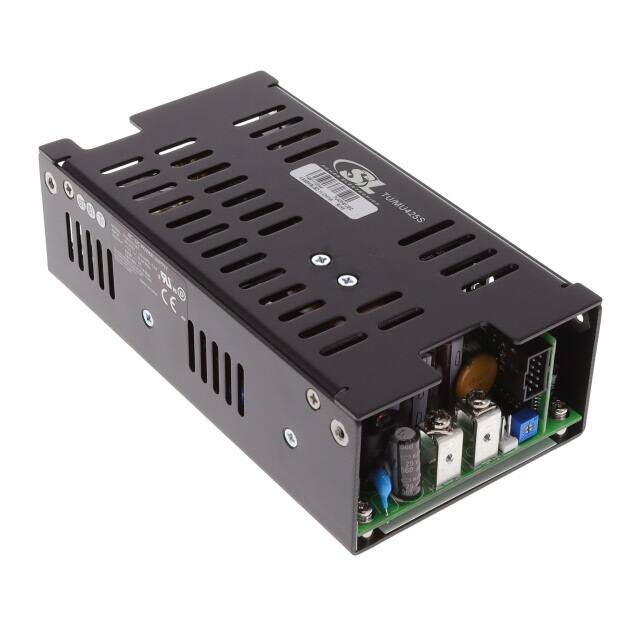

The SL Power Electronics TU425S12EC is a 170W AC/DC converter from the TU425 family, designed for industrial applications. It provides a single 12V output and operates with universal input voltage (90-264VAC).
Key electrical specifications include a maximum convection cooled power of 170W, which can be increased to 312W with forced air cooling. The converter boasts a typical efficiency of 90% and features such as adjustable output, power factor correction (PFC), remote sense, a standby output, and universal input.
Mechanically, the unit measures 157.5mm x 83.8mm x 41.1mm and is designed for chassis mounting. It operates within a temperature range of -10°C to 70°C with derating. The TU425S12EC is approved by CE, cURus, and DEMKO, and complies with standard 60950-1.
This converter is suitable for ITE (Commercial) applications and offers features like remote sense and a standby output, making it a versatile solution for various industrial power needs.
The nominal output voltage is 12V.
The maximum output current is 14.2A under convection cooling and 26A with 200 LFM forced air.
The input voltage range is 90-264VAC.
The operating temperature range is -10°C to 70°C with derating.
It is approved to CE, cURus, and DEMKO standards per 60950-1.
The typical efficiency is 90%.
The minimum isolation voltage is 3000VAC.
