Mfr Part #:

TSW-150-08-T-S-RA

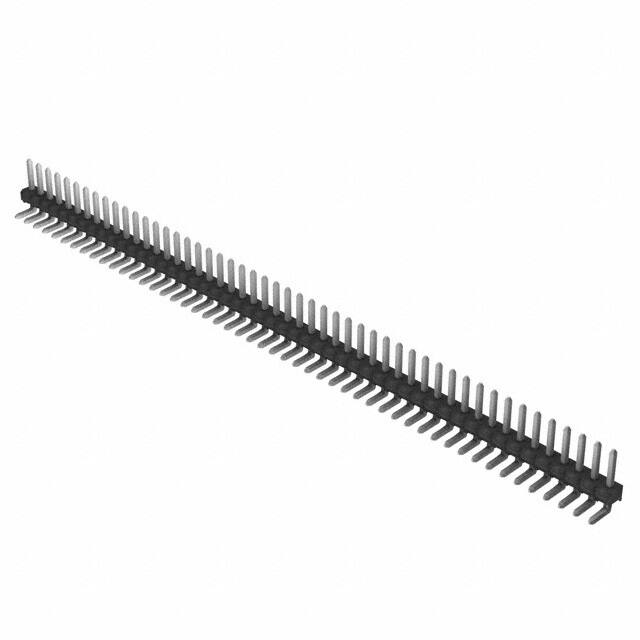

Samtec TSW-150-08-T-S-RA is a 50 position single row right angle unshrouded header with 2.54mm pitch and through hole solder termination.

✓ Total Stock: 3 pcs

$ Price Range: $1.41 - $2.36

TSW-150-08-T-S-RA Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	3 pcs On Request	3 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TSW-150-08-T-S-RA Description

Short technical summary and product information.

The Samtec TSW-150-08-T-S-RA is a 50 position single row right angle unshrouded header from the TSW series. It features a 2.54mm (0.100") pitch and through hole solder termination. The connector uses phosphor bronze contacts with a tin finish over 50 µ" (1.27 µm) nickel. The insulator is made of black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating.

The header has a right angle mounting orientation and an unshrouded design. The contact length is 5.84mm (0.230") and the insulation height is 3.02mm (0.119"). The operating temperature range is -55°C to +105°C. When mated with Samtec SSW series sockets, the current rating is 5.7 A per pin (2 positions powered) and the voltage rating is 550 VAC.

This connector is suitable for board-to-board or cable applications. The TSW series is not lead-free solderable; lead wave soldering is required. The part uses lead style -08 which corresponds to a 13.46mm (0.530") A dimension.

TSW-150-08-T-S-RA Quick Information

Product Type: Header, Male Pins

Series: TSW

Canonical Name: Samtec TSW-150-08-T-S-RA 50 Position Single Row Right Angle Unshrouded Header

Subcategory: Unshrouded

TSW-150-08-T-S-RA Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: No, Lead Wave Only

TSW-150-08-T-S-RA Estimated Pricing

Qty	Low	High
1+	$2.36	$2.36
50+	$2.05	$2.05
100+	$1.78	$1.78
500+	$1.55	$1.55
1,000+	$1.41	$1.41

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-150-08-T-S-RA Features

50 position single row right angle header.
2.54mm pitch with through hole solder termination.
Tin plated phosphor bronze contacts.
Rated for 5.7 A per pin with SSW mate.
UL94 V-0 rated PBT insulator.

TSW-150-08-T-S-RA Applications

Board-to-board interconnection in electronic assemblies.
Cable-to-board connections using IDC cable mates.
Right angle routing in space-constrained designs.
General purpose signal interconnection applications.

TSW-150-08-T-S-RA FAQs

5 frequently asked questions generated from this part’s specifications.

How many positions does the TSW-150-08-T-S-RA have?

50 positions in a single row.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating of the TSW-150-08-T-S-RA?

5.7 A per pin when mated with SSW series sockets (2 positions powered).

What is the voltage rating of this connector?

550 VAC when mated with SSW series sockets.

What is the mounting type of the TSW-150-08-T-S-RA?

Through hole, right angle.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.02mm (0.119")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Spacing	2.54mm (0.100")
Lead Style	-08
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-55°C ~ 105°C
Pitch	2.54mm (0.100")
Plating	Tin over 50 µ" (1.27 µm) Ni
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
Termination Style	Solder
