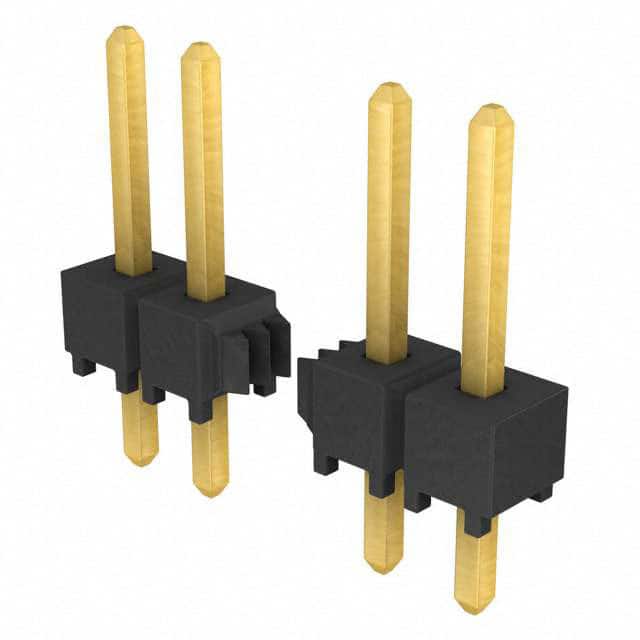

The Samtec TSW-150-07-G-S is a 50-position single row male pin header from the TSW series. It features a 2.54mm (0.100") pitch and a through hole mounting style with solder termination. The connector is unshrouded and designed for board-to-board or cable-to-board applications. Contacts are made of phosphor bronze with a 10.0µin (0.25µm) gold plating over 50µin nickel, ensuring reliable low-resistance connections. The insulator is black PBT rated UL94 V-0.
Electrically, the TSW-150-07-G-S is rated for 6.3A per pin when mated with SSQ receptacles (2 positions powered) and 550 VAC when mated with SSW receptacles. The operating temperature range is -55°C to +125°C with gold plating. The overall contact length is 10.92mm (0.430") with a mating length of 5.84mm (0.230"). The lead style -07 is optimized for mating with IDC cable series.
This header is not lead-free solderable; it requires lead wave soldering per the manufacturer. The part is through hole mounted, suitable for standard PCB assembly processes. Typical applications include signal interconnection in industrial, automotive, and consumer electronics where reliable high-density connections are needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.27 | $4.27 |
| 25+ | $4.12 | $4.12 |
| 50+ | $3.92 | $3.92 |
| 100+ | $3.65 | $3.65 |
| 500+ | $3.13 | $3.13 |
| 1,000+ | $2.66 | $2.66 |
| 2,500+ | $2.27 | $2.27 |
| 5,000+ | $2.09 | $2.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions, single row.
2.54mm (0.100").
6.3A per pin when mated with SSQ, 2 positions powered.
550 VAC when mated with SSW.
Through hole, solder termination.
-55°C to +125°C with gold plating.
10.0µin (0.25µm) gold over 50µin nickel.
