| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

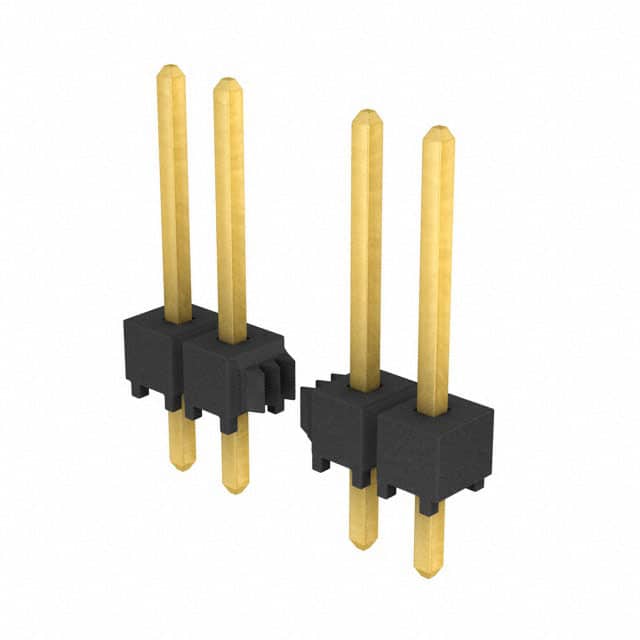

The Samtec TSW-140-14-G-S is a 40-position single-row unshrouded header designed for board-to-board or cable applications. It features a 2.54mm (0.100") pitch, through-hole mounting, and solder termination. The gold-plated square pins provide reliable connections with a contact length of 8.13mm and an overall contact length of 13.46mm. The insulator is made of black PBT with a UL94 V-0 flammability rating, supporting an operating temperature range of -55°C to 125°C. Each pin is rated for 5.7A when mated with SSW series receptacles and 6.3A when mated with SSQ series, with a voltage rating of 550VAC. The push-pull fastening type and unshrouded design make it suitable for a variety of interconnect needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.23 | $6.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 40 positions in a single row.
The pitch is 2.54mm (0.100").
When mated with SSW, it is 5.7A. When mated with SSQ, it is 6.3A (2 positions powered).
550 VAC when mated with SSW.
Through hole with solder termination.
