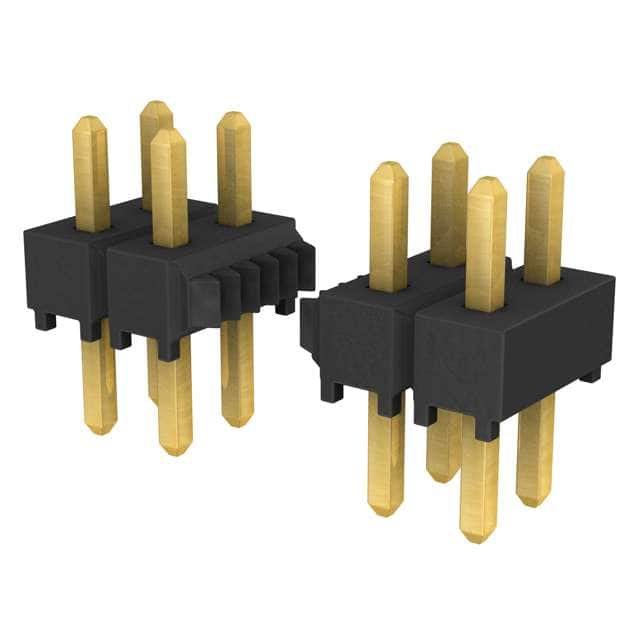

TSW-130-05-G-D Samtec TSW-130-05-G-D is a 60 position, 2.54mm pitch, through hole header with male pins and gold contact finish.
Mfr Part #:

TSW-130-05-G-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-130-05-G-D is a 60 position, 2.54mm pitch, through hole header with male pins and gold contact finish.
✓ Total Stock: 27 pcs
$ Price Range: $7.45 - $40.42

TSW-130-05-G-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
27 pcs
On Request
27 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-130-05-G-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

TSW-130-05-G-D Description

Short technical summary and product information.

The Samtec TSW-130-05-G-D is a 60 position, 2 row, unshrouded header from the TSW series. It features a 2.54mm pitch and row spacing, with through hole solder termination. The connector is designed for board-to-board or cable applications.



The header uses phosphor bronze contacts with a 10.0µin gold finish over 50µin nickel. The insulator is black PBT with a UL94 V-0 flammability rating. The operating temperature range is -55°C to 125°C.



Electrical ratings include a voltage rating of 550 VAC when mated with SSW series sockets. Current rating per pin varies by mating socket, up to 6.3 A with SSQ series. The overall contact length is 8.51mm with a contact length of 2.67mm and insulation height of 2.54mm.

TSW-130-05-G-D Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: Samtec TSW Series 60 Position 2.54mm Pitch Through Hole Header, Male Pins
Subcategory: Male Pins

TSW-130-05-G-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No, Lead Wave Only

TSW-130-05-G-D Estimated Pricing

Qty Low High
1+ $7.45 $7.45
5+ $40.42 $40.42
25+ $39.61 $39.61
50+ $38.82 $38.82
100+ $38.04 $38.04
250+ $37.28 $37.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-130-05-G-D Features

  • 60 position 2.54mm pitch header.
  • Gold plated phosphor bronze contacts.
  • Through hole solder termination.
  • Rated for 550 VAC operation.
  • Operating temperature -55°C to 125°C.

TSW-130-05-G-D Applications

  • Board-to-board interconnect applications.
  • Cable-to-board connection systems.
  • General purpose signal routing.

TSW-130-05-G-D FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the TSW-130-05-G-D have?

60 positions in 2 rows.

What is the pitch of this header?

2.54mm (0.100") pitch with 2.54mm row spacing.

What is the voltage rating?

550 VAC when mated with SSW series sockets.

What is the current rating per pin?

Up to 6.3 A per pin when mated with SSQ series (2 positions powered).

What is the mounting type?

Through hole with solder termination.
