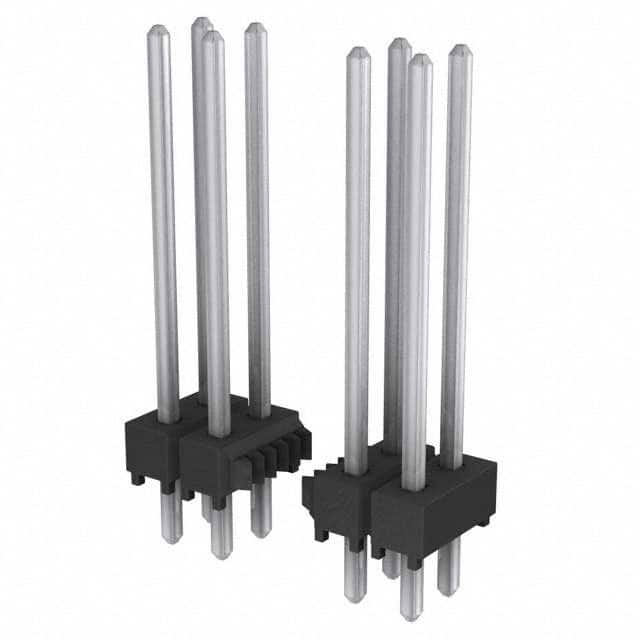

TSW-123-17-T-D Samtec TSW-123-17-T-D is a 46 position, 2.54mm pitch, through hole unshrouded header with male pins. It features tin plated phosphor bronze contacts and a PBT insulator.
Mfr Part #:

TSW-123-17-T-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-123-17-T-D is a 46 position, 2.54mm pitch, through hole unshrouded header with male pins. It features tin plated phosphor bronze contacts and a PBT insulator.
✓ Total Stock: 25 pcs
$ Price Range: $1.20 - $2.76

TSW-123-17-T-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-123-17-T-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

TSW-123-17-T-D Description

Short technical summary and product information.

The Samtec TSW-123-17-T-D is a 46-position, dual-row unshrouded header from the TSW series. It features a 2.54mm (0.100") pitch and row spacing, making it suitable for board-to-board or cable applications. The connector uses through hole mounting with solder termination.



The header has male square pins made of phosphor bronze with a tin plating. The insulator is made of black Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating. The overall contact length is 21.08mm (0.830") with a mating contact length of 15.75mm (0.620"). The insulation height is 2.54mm (0.100").



This component is rated for an operating temperature range of -55°C to 105°C. The current rating is 5.7A per pin when mated with an SSW series socket, and the voltage rating is 550 VAC when mated with SSW. The fastening type is push-pull.

TSW-123-17-T-D Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: Samtec TSW Series 46 Position 2.54mm Pitch Through Hole Unshrouded Header, Male Pins
Subcategory: Unshrouded Header

TSW-123-17-T-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected
Lead Free: Yes

TSW-123-17-T-D Estimated Pricing

Qty Low High
1+ $2.76 $2.76
50+ $2.68 $2.68
100+ $2.29 $2.29
500+ $2.09 $2.09
1,000+ $1.72 $1.72
2,000+ $1.53 $1.53
5,000+ $1.31 $1.31
10,000+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-123-17-T-D Features

  • 46 positions in a dual row configuration.
  • 2.54mm pitch and row spacing.
  • Through hole mounting with solder termination.
  • Tin plated phosphor bronze contacts.
  • UL94 V-0 rated PBT insulator.

TSW-123-17-T-D Applications

  • Board-to-board interconnection applications.
  • Cable-to-board connection systems.
  • General purpose signal routing.

TSW-123-17-T-D FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSW-123-17-T-D have?

The TSW-123-17-T-D has 46 positions.

What is the pitch of the TSW-123-17-T-D?

The pitch is 2.54mm (0.100").

What is the current rating of the TSW-123-17-T-D?

The current rating is 5.7A per pin when mated with an SSW series socket.

What is the voltage rating of the TSW-123-17-T-D?

The voltage rating is 550 VAC when mated with an SSW series socket.

What is the mounting type for the TSW-123-17-T-D?

The mounting type is through hole.

What is the operating temperature range of the TSW-123-17-T-D?

The operating temperature range is -55°C to 105°C.

What is the contact material and finish of the TSW-123-17-T-D?

The contact material is phosphor bronze with a tin finish.
