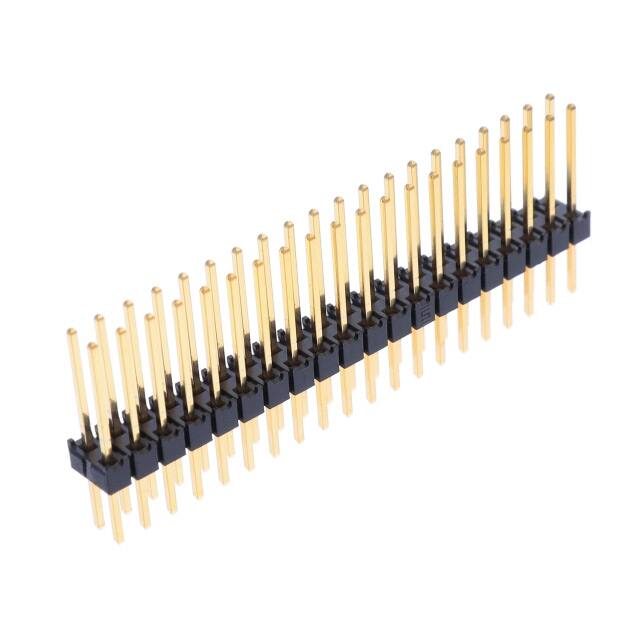

Mfr Part #:

TSW-120-09-G-D

Name: TSW-120-09-G-D
Brand: Samtec Inc.
SKU: TSW-120-09-G-D

Mfr Name: Samtec Inc.

Description:

CONN HDR .100" 40POS

Stock on Request

TSW-120-09-G-D Description

Short technical summary and product information.

CONN HDR .100" 40POS

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	10.0碌in (0.25碌m)
Contact Length	0.230" (5.84mm)
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.100" (2.54mm)
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	0.730" (18.54mm)
Pitch	0.100" (2.54mm)
Row Spacing	0.100" (2.54mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
