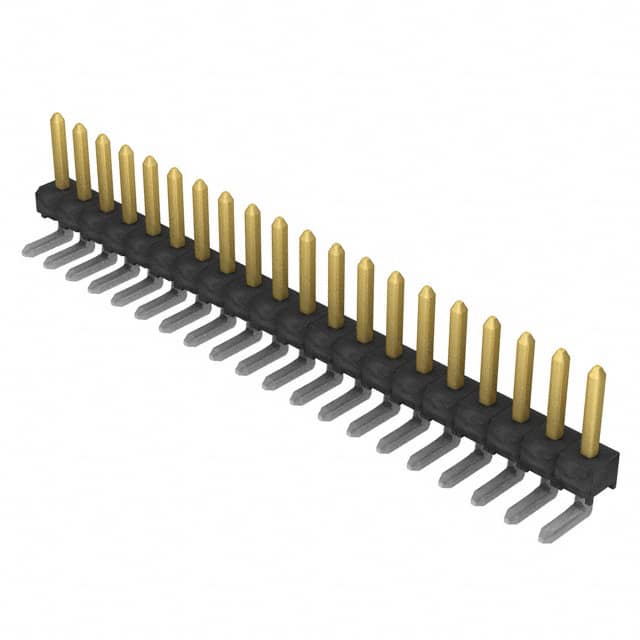

TSW-120-08-L-S-RA Samtec TSW-120-08-L-S-RA is a 20-position, single-row, right-angle through-hole header with 2.54mm pitch and 10µin gold/tin contact finish.
Mfr Part #:

TSW-120-08-L-S-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-120-08-L-S-RA is a 20-position, single-row, right-angle through-hole header with 2.54mm pitch and 10µin gold/tin contact finish.
✓ Total Stock: 394 pcs
$ Price Range: $0.80 - $1.89

TSW-120-08-L-S-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
394 pcs
On Request
394 pcs On Request 1 On Request On Request 640 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-120-08-L-S-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish - Mating
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-120-08-L-S-RA Description

Short technical summary and product information.

The Samtec TSW-120-08-L-S-RA is a 20-position, single-row, right-angle through-hole header from the TSW series. It features a 2.54mm (0.100in) pitch and unshrouded male pin contacts made of phosphor bronze with a square contact shape. The mating contact finish is 10µin gold, while the termination finish is tin. The insulation is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The header has a mating contact length of 5.84mm (0.230in) and a tail length of 2.286mm (0.090in). It is designed for board-to-board or cable applications and is packaged in bulk. The operating temperature range is -55°C to 125°C.

TSW-120-08-L-S-RA Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: Samtec TSW-120-08-L-S-RA .100in/2.54mm Through Hole Header, 20 Position, 1 Row, Right Angle, 10µin Gold/Tin
Subcategory: Unshrouded Header

TSW-120-08-L-S-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-120-08-L-S-RA Estimated Pricing

Qty Low High
1+ $1.89 $1.89
100+ $1.61 $1.61
500+ $1.39 $1.39
1,000+ $1.17 $1.17
2,000+ $1.05 $1.05
5,000+ $0.92 $0.92
10,000+ $0.80 $0.80

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-120-08-L-S-RA Features

  • 20-position single-row right-angle header.
  • 2.54mm pitch with 10µin gold/tin plating.
  • Phosphor bronze square pin contacts.
  • PBT insulation rated UL94 V-0.
  • Operating temperature -55°C to 125°C.

TSW-120-08-L-S-RA Applications

  • Board-to-board interconnect applications.
  • Cable-to-board header connections.
  • General purpose signal routing.

TSW-120-08-L-S-RA FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the TSW-120-08-L-S-RA have?

20 positions, all loaded, in a single row.

What is the pitch of this header?

2.54mm (0.100in).

What is the mounting type?

Through hole, right angle.

What is the contact finish on the mating area?

10µin gold.

What is the operating temperature range?

-55°C to 125°C.
