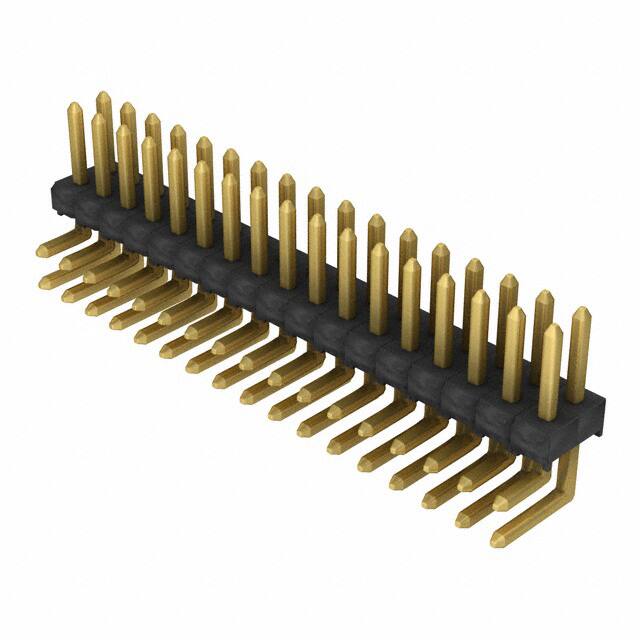

TSW-117-08-G-D-RA Samtec TSW-117-08-G-D-RA is a 34-position, 2-row, right-angle through-hole header with 2.54mm pitch. It features gold-plated phosphor bronze contacts and a UL94 V-0 rated PBT insulator.
Mfr Part #:

TSW-117-08-G-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-117-08-G-D-RA is a 34-position, 2-row, right-angle through-hole header with 2.54mm pitch. It features gold-plated phosphor bronze contacts and a UL94 V-0 rated PBT insulator.
✓ Total Stock: 707 pcs
$ Price Range: $2.81 - $4.80

TSW-117-08-G-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
707 pcs
On Request
707 pcs On Request 1 On Request On Request 627 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-117-08-G-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-117-08-G-D-RA Description

Short technical summary and product information.

The Samtec TSW-117-08-G-D-RA is a 34-position, 2-row, right-angle through-hole header from the TSW series. It features a 2.54mm (0.100") pitch and is designed for board-to-board or cable applications. The connector has unshrouded male square pins with a gold finish (10µin) over phosphor bronze contacts.



The insulator is made of black PBT with a UL94 V-0 flammability rating. The mounting type is through-hole, right-angle, with solder termination. The insulation height is 5.56mm, and the contact length (post) is 5.84mm with a tail length of 2.29mm. The operating temperature range is -55°C to 125°C.



This header is suitable for a wide range of interconnect applications requiring reliable, high-density connections. The right-angle orientation allows for space-saving designs on PCBs. The gold plating ensures good corrosion resistance and reliable mating cycles.

TSW-117-08-G-D-RA Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: Samtec TSW-117-08-G-D-RA .100in/2.54mm Through Hole Header, 34 Pin, 2 Row, Right Angle
Subcategory: Male Pins

TSW-117-08-G-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-117-08-G-D-RA Estimated Pricing

Qty Low High
1+ $4.80 $4.80
25+ $4.77 $4.77
50+ $4.41 $4.41
100+ $3.99 $3.99
500+ $3.45 $3.45
1,000+ $3.09 $3.09
2,500+ $2.81 $2.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-117-08-G-D-RA Features

  • 34-position, 2-row right-angle header.
  • 2.54mm (0.100") pitch for standard applications.
  • Gold-plated phosphor bronze contacts.
  • UL94 V-0 rated PBT insulator.
  • Operating temperature range -55°C to 125°C.

TSW-117-08-G-D-RA Applications

  • Board-to-board interconnections in electronic assemblies.
  • Cable-to-board connections using IDC sockets.
  • Right-angle PCB mounting for space-constrained designs.

TSW-117-08-G-D-RA FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does the TSW-117-08-G-D-RA have?

34 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the mounting type?

Through hole, right angle.

What is the contact finish?

Gold, 10µin thickness.
