| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

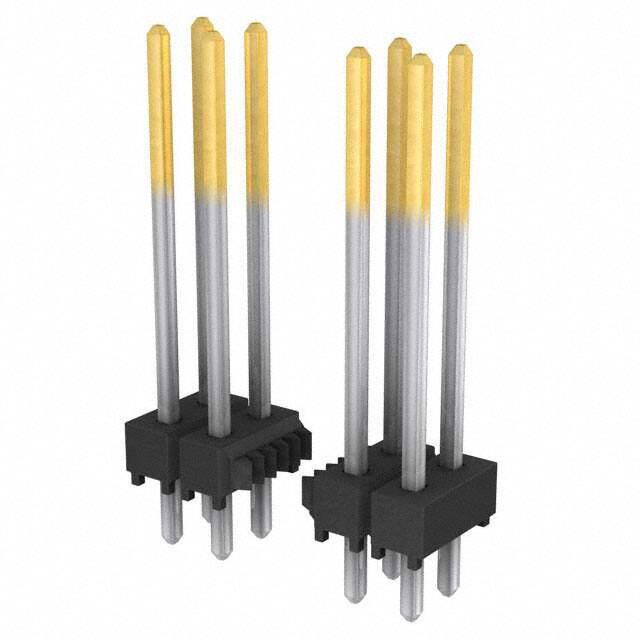

The Samtec TSW-115-17-L-D is a 30-position, 2-row through hole header from the TSW series, designed for classic 0.100 inch (2.54mm) pitch applications. It features unshrouded square male pins with a phosphor bronze contact material and a tin finish (gold flash on mating post, matte tin on tail). The insulator is made of black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating.
Key specifications include a pitch of 2.54mm, row spacing of 2.54mm, and an overall contact length of 21.08mm (0.830 inches) with a mating contact length of 15.75mm (0.620 inches). The header is push-pull fastening and supports both board-to-board and cable-to-board configurations.
Electrically, the TSW-115-17-L-D is rated for 5.7A per pin (with 2 positions powered) when mated with the SSW socket strip, and has a maximum voltage rating of 550 VAC. The operating temperature range is -55°C to +105°C for the tin finish variant. The part is not lead-free solderable and requires lead wave soldering.
Packaging is bulk, and the part is through hole mounted. It mates with Samtec SSW, SSQ, SSM, and other socket strips. Common applications include industrial control, test equipment, and general purpose board-to-board interconnects.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.81 | $2.81 |
| 50+ | $2.75 | $2.75 |
| 100+ | $2.34 | $2.34 |
| 500+ | $2.13 | $2.13 |
| 1,000+ | $1.77 | $1.77 |
| 2,000+ | $1.58 | $1.58 |
| 5,000+ | $1.36 | $1.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions, loaded all (all positions filled).
2.54mm (0.100 inches).
5.7A per pin when mated with SSW, with 2 positions powered.
550 VAC when mated with SSW socket strip.
Through hole (solder termination).
-55°C to +105°C for the tin finish version.
Matte tin on tail, gold flash on mating post (10µin gold over nickel on post, tin on tail).
