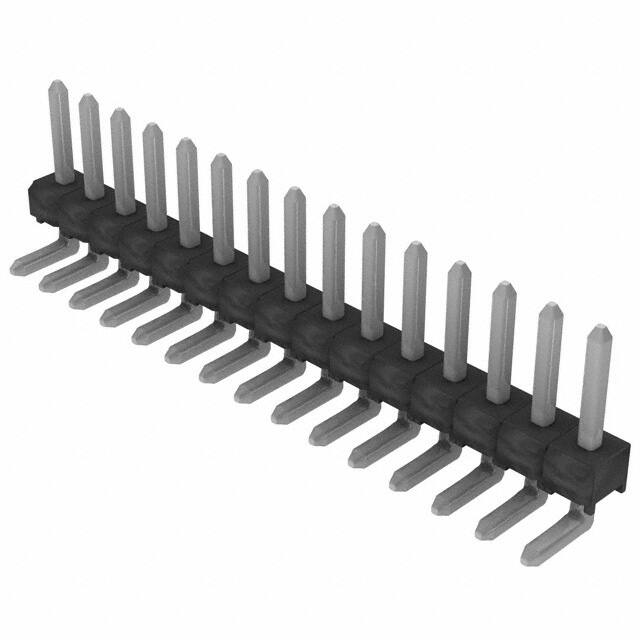

The TSW-115-08-T-S-RA is a 15-position single row right angle header from Samtec's TSW series. It features a 2.54mm (0.100") pitch and is designed for through-hole mounting with solder termination. The header is unshrouded with a push-pull fastening type, suitable for board-to-board or cable connections.
Key specifications include tin-plated phosphor bronze square contacts with a post length of 5.84mm (0.230") and a tail length of 2.286mm (0.090"). The insulation height is 3.02mm (0.119") and the housing is made of black PBT with a UL94 V-0 flammability rating. The operating temperature range is -55°C to 105°C.
This header is commonly used in applications requiring reliable interconnects in industrial, automotive, and consumer electronics. The right-angle orientation allows for space-saving designs on PCBs. The TSW series offers a wide variety of pin counts and plating options for design flexibility.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.05 | $1.05 |
| 50+ | $0.87 | $0.87 |
| 100+ | $0.72 | $0.72 |
| 500+ | $0.61 | $0.61 |
| 1,000+ | $0.58 | $0.58 |
| 2,000+ | $0.51 | $0.51 |
| 5,000+ | $0.44 | $0.44 |
| 10,000+ | $0.38 | $0.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions in a single row.
2.54mm (0.100").
Through hole, right angle.
-55°C to 105°C.
Tin.
UL94 V-0.
Phosphor bronze.
