| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
109 pcs
|
109 pcs | On Request | 1 | On Request | On Request | 2009 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

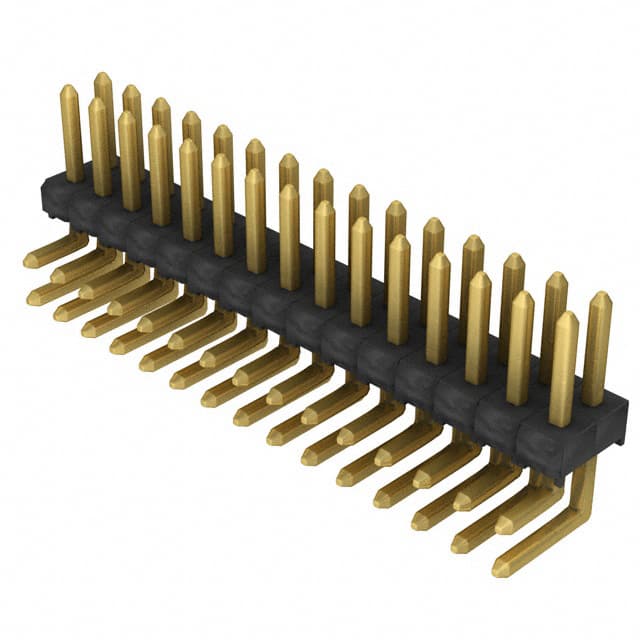

The Samtec TSW-115-08-G-D-RA is a 30-position, dual-row right angle header from the TSW series. It features a 2.54mm (0.100") pitch and is designed for through hole solder termination. The contacts are made of phosphor bronze with a gold plating of 10µin (0.25µm) over 50µin nickel, ensuring reliable conductivity and corrosion resistance.
This unshrouded header supports board-to-board or cable-to-board connections and mates with a wide range of Samtec socket strips including SSW, SSQ, SSM, ESW, ESQ, BCS, CES, and SLW. Electrical ratings vary by mating connector: voltage up to 550 VAC (mated with SSW) and current per pin up to 6.3A (mated with SSQ). The operating temperature range is -55°C to +125°C with gold plating.
The insulator is black PBT (Polybutylene Terephthalate) with a UL94 V-0 flammability rating. The part is packaged in bulk and is not lead-free solderable (lead wave only). RoHS3 compliance is claimed but unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.19 | $5.19 |
| 50+ | $4.50 | $4.50 |
| 100+ | $3.87 | $3.87 |
| 500+ | $3.40 | $3.40 |
| 1,000+ | $2.86 | $2.86 |
| 2,000+ | $2.56 | $2.56 |
| 5,000+ | $2.37 | $2.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions, all loaded.
2.54mm (0.100").
Varies by mating connector: up to 6.3A when mated with SSQ, 5.7A with SSW, 5.2A with ESW/SLW/SSM, 4.6A with BCS, 4.3A with SNT (2 positions powered).
Up to 550 VAC when mated with SSW; 500 VAC with BCS; 515 VAC with ESQ; 450 VAC for -RA/-RE mated with BCS or SSM; 400 VAC with CES.
Through hole, right angle.
-55°C to +125°C with gold plating; -55°C to +105°C with tin plating.
Gold plating, 10µin (0.25µm) over 50µin nickel.
