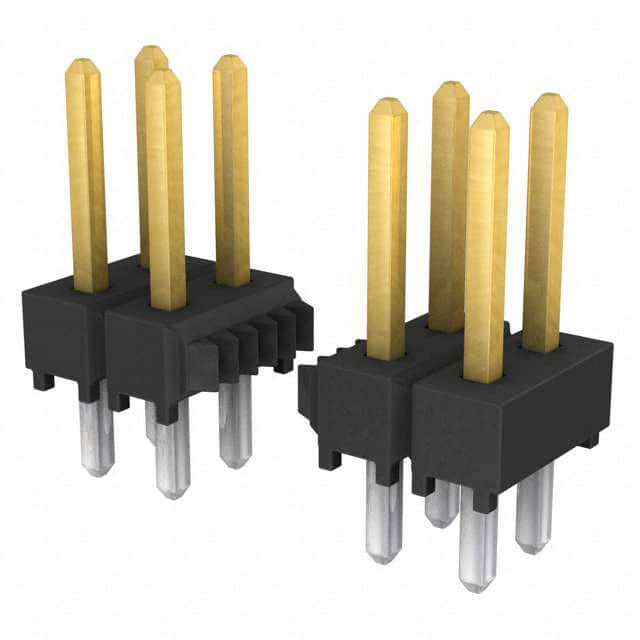

The Samtec TSW-114-07-S-D is a 28-position, dual-row through hole header from the TSW series. It features a 2.54mm (0.100 inch) pitch with 0.100 inch row spacing, making it suitable for standard board-to-board and cable interconnect applications. The header uses phosphor bronze contacts with a 30µin gold/tin finish and a square pin shape, ensuring reliable electrical connections.
The insulation is molded from black PBT (Polybutylene Terephthalate) with a UL94 V-0 flammability rating, providing robust mechanical support and safety compliance. The unshrouded design allows for easy mating with a variety of socket strips. The overall contact length is 0.430 inches (10.92mm) with a post length of 0.230 inches (5.84mm).
This header is designed for through hole soldering and is supplied in bulk packaging. It operates over a temperature range of -55°C to 125°C, making it suitable for industrial and commercial environments. The push-pull fastening type ensures simple insertion and removal.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.09 | $3.09 |
| 100+ | $2.84 | $2.84 |
| 500+ | $2.47 | $2.47 |
| 1,000+ | $2.17 | $2.17 |
| 2,500+ | $1.86 | $1.86 |
| 5,000+ | $1.65 | $1.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 28 positions arranged in 2 rows.
The pitch is 2.54mm (0.100 inches) with a row spacing of 0.100 inches.
It is a through hole mounting header with solder termination.
The operating temperature range is -55°C to 125°C.
The contacts have a 30µin gold/tin finish over phosphor bronze.
The insulation material is PBT with a UL94 V-0 flammability rating.
