| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,994 pcs
|
15994 pcs | On Request | 1 | On Request | On Request | 604 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Packaging Type | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

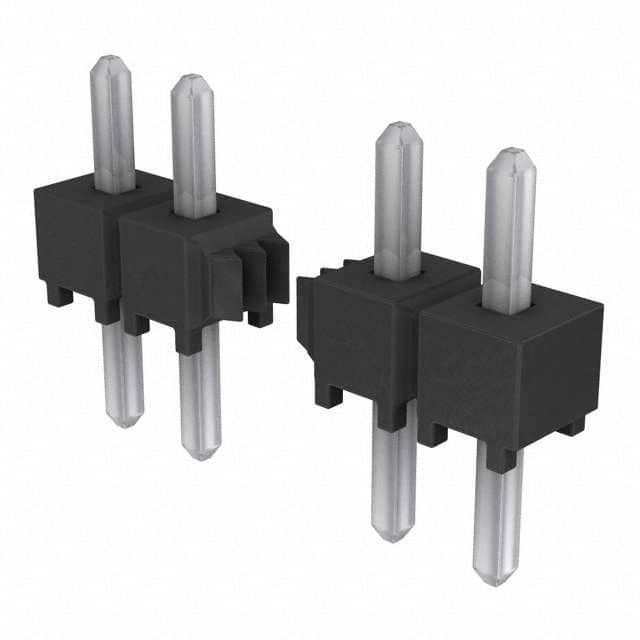

The TSW-114-06-T-S is a 14-position single row unshrouded pin header from Samtec's TSW series. It features a 2.54mm (0.100") pitch and through-hole mounting with solder termination, suitable for board-to-board or cable connections.
The connector uses 0.025" square tin-plated phosphor bronze contacts with a post length of 0.105" and overall contact length of 0.300". The black PBT insulator is rated UL94 V-0 and the operating temperature ranges from -55°C to 105°C.
Packaged in bulk, this header is RoHS3 compliant with MSL 1 (unlimited) and REACH unaffected, providing a reliable interconnect solution for a variety of electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
| 50+ | $0.96 | $0.96 |
| 100+ | $0.67 | $0.67 |
| 1,000+ | $0.55 | $0.55 |
| 2,000+ | $0.48 | $0.48 |
| 5,000+ | $0.41 | $0.41 |
| 10,000+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions in a single row.
2.54mm (0.100").
Through hole with solder termination.
-55°C to 105°C.
Phosphor bronze contacts with tin plating.
Black PBT (Polybutylene Terephthalate) with UL94 V-0 rating.
