TSW-113-08-T-S-RA Samtec TSW-113-08-T-S-RA is a 13 position single row right angle unshrouded through-hole header with 2.54mm pitch, tin plated phosphor bronze contacts.
Mfr Part #:

TSW-113-08-T-S-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-113-08-T-S-RA is a 13 position single row right angle unshrouded through-hole header with 2.54mm pitch, tin plated phosphor bronze contacts.
✓ Total Stock: 939 pcs
$ Price Range: $0.33 - $0.95

TSW-113-08-T-S-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
939 pcs
On Request
939 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-113-08-T-S-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-113-08-T-S-RA Description

Short technical summary and product information.

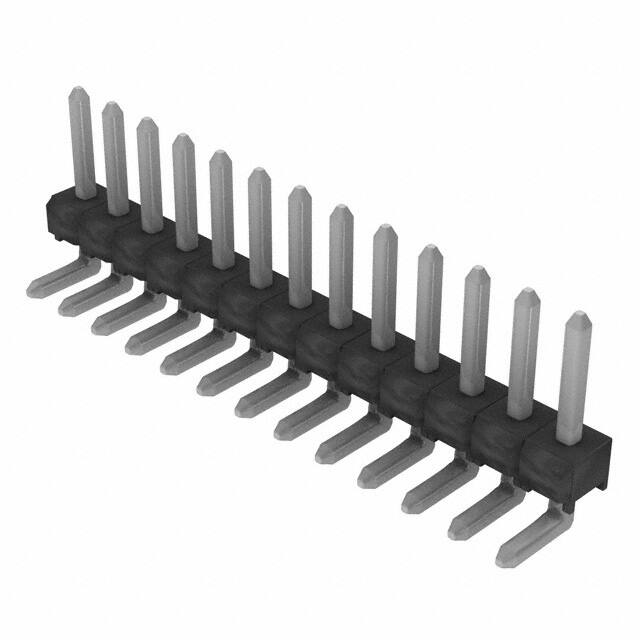

The Samtec TSW-113-08-T-S-RA is a 13 position single row right angle through-hole header from the TSW series. It features a 2.54mm pitch and unshrouded push-pull design for board-to-board or cable applications. The rectangular male pins are made of phosphor bronze with a tin finish, ensuring reliable electrical connections. The header is housed in a black polybutylene terephthalate (PBT) insulator rated UL94 V-0 and operates within a temperature range of -55°C to 105°C. Mating post length is 5.84mm (0.230") and tail length is 2.286mm (0.090") with an insulation height of 3.02mm (0.119"). Designed for manual or wave soldering, the right-angle orientation facilitates compact PCB layouts. The header is supplied in bulk packaging.

TSW-113-08-T-S-RA Quick Information

Product Type: Header
Series: TSW
Canonical Name: Samtec TSW-113-08-T-S-RA 13 Position Single Row Right Angle Unshrouded Header
Subcategory: Unshrouded Header

TSW-113-08-T-S-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-113-08-T-S-RA Estimated Pricing

Qty Low High
1+ $0.95 $0.95
50+ $0.72 $0.72
100+ $0.63 $0.63
500+ $0.60 $0.60
1,000+ $0.48 $0.48
2,000+ $0.44 $0.44
5,000+ $0.37 $0.37
10,000+ $0.33 $0.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-113-08-T-S-RA Features

  • Unshrouded right angle header with 13 positions.
  • 2.54mm pitch for standard 0.100in applications.
  • Tin plated phosphor bronze square pins.
  • Through hole termination with solder tails.
  • UL94 V-0 black PBT insulator housing.

TSW-113-08-T-S-RA Applications

  • Board-to-board interconnection in compact designs.
  • Cable-to-board headers for low voltage circuits.
  • Prototyping and development breadboard headers.
  • Industrial control and automation signal interfaces.

TSW-113-08-T-S-RA FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the TSW-113-08-T-S-RA have?

It has 13 positions in a single row.

What is the pitch of this header?

The pitch is 2.54mm (0.100").

What is the mounting type?

It is a through-hole right angle mounting type.

What is the contact finish?

The contact finish is tin.

What is the operating temperature range?

The operating temperature range is -55°C to 105°C.
