Mfr Part #:

TSW-112-07-T-D

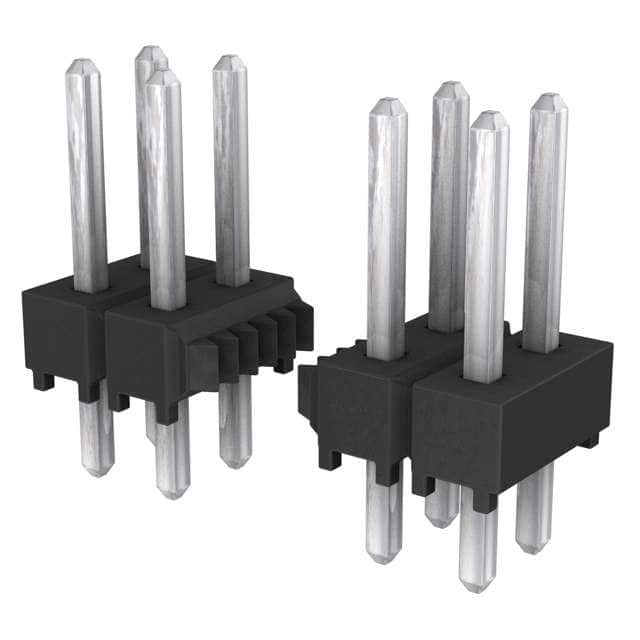

Samtec TSW-112-07-T-D is a 24-position, 2-row, through-hole header with a 2.54mm pitch. It features tin-plated phosphor bronze male pins and a black PBT insulator.

✓ Total Stock: 3,774 pcs

$ Price Range: $0.52 - $1.13

TSW-112-07-T-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	3,774 pcs On Request	3774 pcs	On Request	1	On Request	On Request	627	On Request	On Request

TSW-112-07-T-D Description

Short technical summary and product information.

The Samtec TSW-112-07-T-D is a 24-position, 2-row, unshrouded through-hole header from the TSW series. It features a 2.54mm (0.100") pitch and row spacing, with square tin-plated phosphor bronze male pins. The overall contact length is 10.92mm (0.430"), with a mating pin length of 5.84mm (0.230"). The insulator is made of black PBT with a UL94 V-0 flammability rating.

This header is designed for board-to-board or cable applications and mates with Samtec socket strips such as the SSW, SSQ, and SSM series. It is rated for 6.3A per pin (with 2 positions powered) and 550 VAC when mated with an SSW socket. The operating temperature range is -55°C to 105°C for tin-plated versions.

The component uses a push-pull fastening type and is terminated via solder to a through-hole PCB. It is packaged in bulk. Note that this TSW series part is not lead-free solderable and requires a lead wave soldering process.

TSW-112-07-T-D Quick Information

Product Type: Through-Hole Header

Series: TSW

Canonical Name: Samtec TSW-112-07-T-D .100" (2.54mm) Pitch Through-Hole Header, 24 Positions, 2 Rows, Tin Plating

Subcategory: Unshrouded Header

TSW-112-07-T-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

TSW-112-07-T-D Estimated Pricing

Qty	Low	High
1+	$1.13	$1.13
100+	$0.99	$0.99
500+	$0.91	$0.91
1,000+	$0.74	$0.74
2,000+	$0.68	$0.68
5,000+	$0.59	$0.59
10,000+	$0.52	$0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-112-07-T-D Features

24-position, 2-row through-hole header.
2.54mm (0.100") pitch and row spacing.
Tin-plated phosphor bronze square pins.
Rated for 6.3A and 550 VAC operation.
Black PBT insulator with UL94 V-0 rating.

TSW-112-07-T-D Applications

Board-to-board and cable interconnect systems.
Mating with Samtec socket strip series.
General purpose PCB header applications.
Prototyping and production wiring.

TSW-112-07-T-D FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TSW-112-07-T-D have?

24 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating of the TSW-112-07-T-D?

6.3A per pin when mated with SSQ, with 2 positions powered.

What is the voltage rating of this connector?

550 VAC when mated with SSW.

What is the mounting type for this part?

Through-hole.

What is the operating temperature range?

-55°C to 105°C.

What is the contact material and finish?

Phosphor bronze contact material with a tin finish.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Spacing	2.54 mm
Lead Style	Through Hole
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 105°C
Overall Contact Length	0.430" (10.92mm)
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Unshrouded
Storage Temperature	-55.0°C ~ 105.0°C
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
