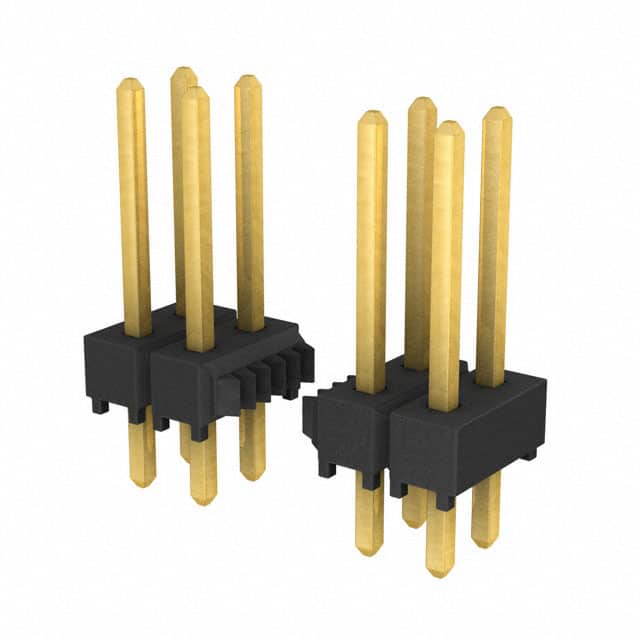

The Samtec TSW-110-14-G-D is a 20-position, 2-row, unshrouded through-hole header from the TSW series. It features a 2.54mm pitch and row spacing, making it suitable for standard 0.100" board-to-board or cable interconnect applications. The connector uses square phosphor bronze male pins with a 0.25µm gold contact finish, providing reliable conductivity and corrosion resistance.
The header has a push-pull fastening type and is unshrouded, allowing for flexible mating with a wide range of socket connectors. The insulation is made from black PBT with a UL94 V-0 flammability rating, and the operating temperature range is -55°C to 125°C. The overall contact length is 13.46mm, with a mating contact length of 8.13mm.
This component is packaged in bulk and is RoHS3 and REACH compliant. It is designed for vertical mounting and uses solder termination for permanent PCB attachment.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.15 | $3.15 |
| 50+ | $3.02 | $3.02 |
| 100+ | $2.41 | $2.41 |
| 500+ | $1.95 | $1.95 |
| 1,000+ | $1.91 | $1.91 |
| 2,000+ | $1.67 | $1.67 |
| 5,000+ | $1.44 | $1.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TSW-110-14-G-D has 20 positions, all loaded, in 2 rows.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm (0.100").
The mounting type is through hole with solder termination.
The contact material is phosphor bronze with a gold finish of 0.25µm (10µin).
The operating temperature range is -55°C to 125°C.
The insulation material is Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating.
