TSW-110-08-G-D-RA Samtec TSW-110-08-G-D-RA is a 20 position, 2 row, 2.54mm pitch right angle through hole header with gold plated phosphor bronze contacts.
Mfr Part #:

TSW-110-08-G-D-RA

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-110-08-G-D-RA is a 20 position, 2 row, 2.54mm pitch right angle through hole header with gold plated phosphor bronze contacts.
✓ Total Stock: 108 pcs
$ Price Range: $1.59 - $3.05

TSW-110-08-G-D-RA Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-110-08-G-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

TSW-110-08-G-D-RA Description

Short technical summary and product information.

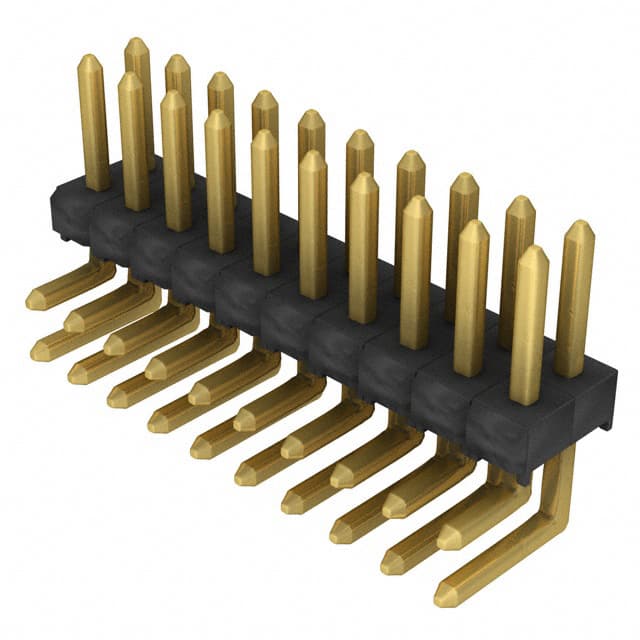

The Samtec TSW-110-08-G-D-RA is a 20 position, 2 row, 2.54mm pitch right angle through hole header from the TSW series. It features unshrouded male square pins with a 0.635mm post size and 2.286mm tail length. The contacts are made of phosphor bronze with a 0.25µm gold finish over 1.27µm nickel. The insulator is black PBT rated UL94 V-0. This connector is designed for board-to-board or cable applications and mates with Samtec socket strips such as SSW, SSQ, and ESW. The operating temperature range is -55°C to +125°C. Current rating is 5.7A per pin when mated with SSW and 5.2A when mated with ESW. Voltage rating is 550VAC mated with SSW. Packaging is bulk.

TSW-110-08-G-D-RA Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: Samtec TSW-110-08-G-D-RA 20 Position 2.54mm Pitch Right Angle Through Hole Header
Subcategory: Male Pins

TSW-110-08-G-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-110-08-G-D-RA Estimated Pricing

Qty Low High
1+ $3.05 $3.05
100+ $2.57 $2.57
500+ $2.17 $2.17
1,000+ $2.00 $2.00
2,000+ $1.76 $1.76
5,000+ $1.59 $1.59

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-110-08-G-D-RA Features

  • 20 position, 2 row, 2.54mm pitch header.
  • Right angle through hole mounting.
  • Gold plated phosphor bronze contacts.
  • Rated for 5.7A per pin and 550VAC.
  • Operating temperature range -55°C to +125°C.

TSW-110-08-G-D-RA Applications

  • Board-to-board interconnection applications.
  • Cable-to-board connection systems.
  • General purpose signal routing.

TSW-110-08-G-D-RA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the TSW-110-08-G-D-RA?

The pitch is 2.54 mm (0.100 in).

How many positions does the TSW-110-08-G-D-RA have?

It has 20 positions arranged in 2 rows.

What is the current rating of the TSW-110-08-G-D-RA?

5.7 A per pin when mated with SSW, 5.2 A per pin when mated with ESW.

What is the voltage rating of the TSW-110-08-G-D-RA?

550 VAC when mated with SSW.

What is the mounting type of the TSW-110-08-G-D-RA?

Through hole, right angle.
