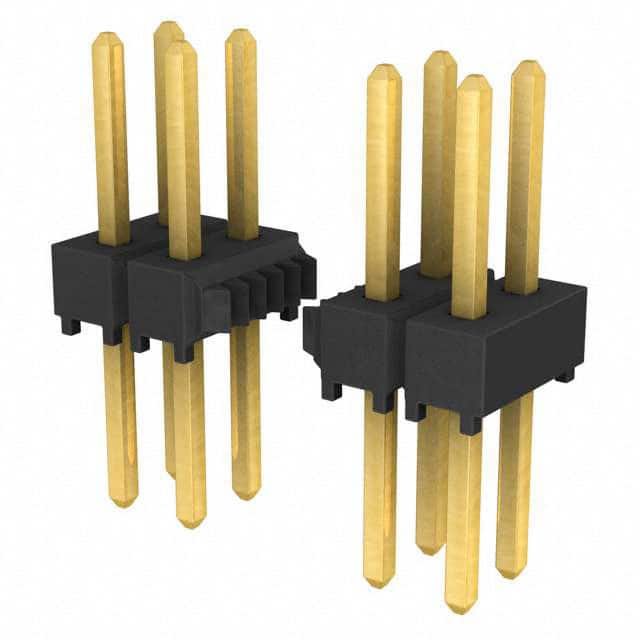

The TSW-110-08-G-D is a 20-position, 2-row unshrouded header from Samtec with a pitch of 2.54mm (0.100") and row spacing of 2.54mm. It features gold-plated phosphor bronze contacts with a finish thickness of 10.0µin (0.25µm). The insulator is made of black Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating.
The operating temperature range is -55°C to 125°C, making it suitable for a wide variety of environments. The header uses a push-pull fastening type and is designed for board-to-board or cable applications. Through-hole mounting with solder termination provides a robust mechanical and electrical connection. The contact length is 5.84mm (0.230") and overall contact length is 13.46mm (0.530").
| Qty | Low | High |
|---|---|---|
| 1+ | $2.52 | $2.52 |
| 100+ | $2.41 | $2.41 |
| 500+ | $2.10 | $2.10 |
| 1,000+ | $1.80 | $1.80 |
| 2,000+ | $1.65 | $1.65 |
| 5,000+ | $1.43 | $1.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100").
Through-hole.
-55°C to 125°C.
Unshrouded.
Gold, 10.0µin thickness.
UL94 V-0.
