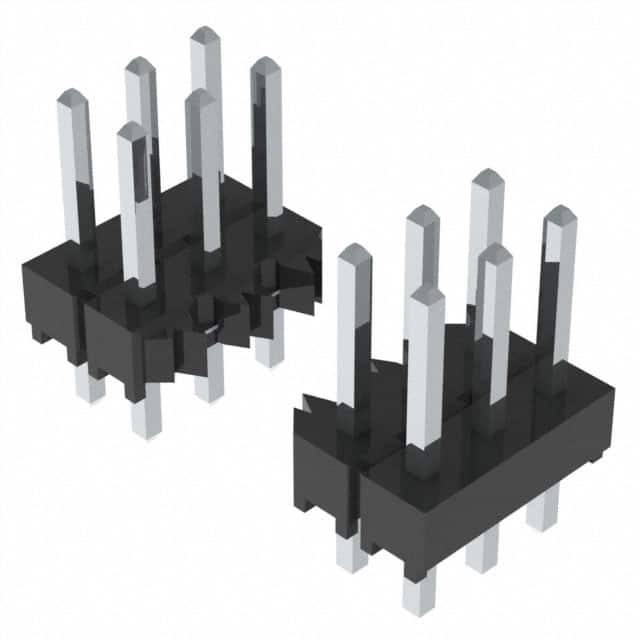

TSW-110-07-T-T 30 position 3-row through hole header with 2.54mm pitch and tin plated square pins. Rated for 550 VAC and 5.7 A per mated pin.
Mfr Part #:

TSW-110-07-T-T

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
30 position 3-row through hole header with 2.54mm pitch and tin plated square pins. Rated for 550 VAC and 5.7 A per mated pin.
✓ Total Stock: 450 pcs
$ Price Range: $0.88 - $1.71

TSW-110-07-T-T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
450 pcs
On Request
450 pcs On Request 1 On Request On Request 421 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-110-07-T-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

TSW-110-07-T-T Description

Short technical summary and product information.

The Samtec TSW-110-07-T-T is a 30-position through hole header from the TSW series. It features 3 rows with a 2.54mm pitch, square male pins with tin plating, and a black PBT insulator. The header is unshrouded with a push-pull fastening type and has an overall contact length of 0.430" (10.92mm). It is rated for 550 VAC when mated with SSW socket strips and a current rating of 5.7 A per pin (2 positions powered). The operating temperature range is -55°C to 105°C. The insulator meets UL94 V-0 flammability rating. This header is suitable for board-to-board or cable-to-board connections and is typically sold in bulk packaging. Note: The TSW series is not lead-free solderable and is intended for lead wave soldering processes.

TSW-110-07-T-T Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: 30 Position 2.54 mm Pitch 3 Row Through Hole Header, Tin Plating
Subcategory: Through Hole Header

TSW-110-07-T-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-110-07-T-T Estimated Pricing

Qty Low High
1+ $1.71 $1.71
100+ $1.64 $1.64
500+ $1.36 $1.36
1,000+ $1.07 $1.07
2,000+ $0.94 $0.94
5,000+ $0.89 $0.89
10,000+ $0.88 $0.88

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-110-07-T-T Features

  • Three rows with 30 positions total.
  • 2.54mm pitch for standard spacing.
  • Tin plated phosphor bronze contacts.
  • Rated for 550 VAC and 5.7 A.
  • Through hole mounting with push-pull mating.

TSW-110-07-T-T Applications

  • Used in board-to-board interconnections.
  • Suitable for cable-to-board connections.
  • Ideal for general purpose signal routing.
  • Compatible with Samtec SSM and SSW socket strips.

TSW-110-07-T-T FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSW-110-07-T-T have?

30 positions arranged in 3 rows.

What is the pitch of this header?

2.54 mm (0.100").

What is the current rating of the TSW-110-07-T-T?

5.7 A per pin when mated with SSW socket strip, with 2 positions powered.

What is the voltage rating?

550 VAC when mated with SSW socket strip.

What is the mounting type?

Through hole.

What is the operating temperature range?

-55°C to 105°C.

What is the contact plating material?

Tin.
