| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

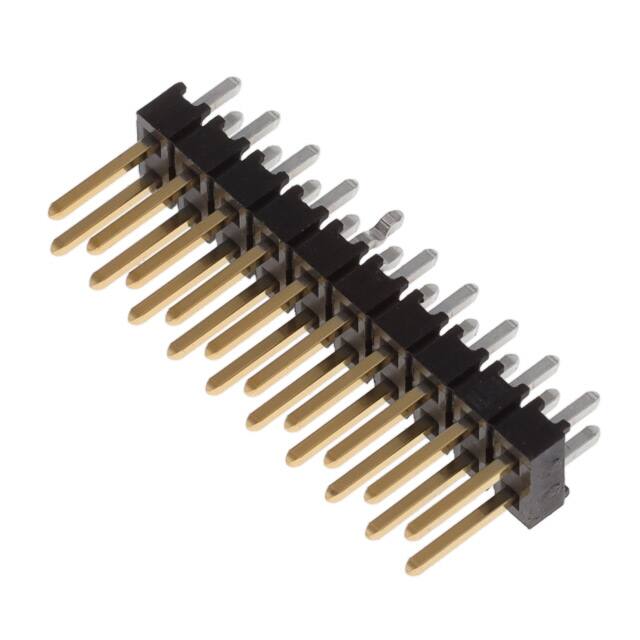

The TSW-110-07-F-D-LL is a 20-position, 2-row, through hole header from Samtec's TSW series. It features a 2.54mm (0.100") pitch and row spacing, making it suitable for standard board-to-board and cable interconnect applications. The header uses square phosphor bronze male pins with a gold flash finish on the post and matte tin on the tail, providing reliable electrical contact.
The insulator is made of black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The part includes a locking lead feature (LL option) for secure mating. Operating temperature range is -55°C to 125°C. When mated with Samtec SSW socket strips, the header is rated for 550 VAC and 5.7 A per pin (2 positions powered).
This header is unshrouded with a push-pull fastening type and uses kinked pin solder termination. The overall contact length is 10.92mm (0.430") with a mating contact length of 5.84mm (0.230"). It is packaged in bulk and is RoHS compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.47 | $1.47 |
| 50+ | $1.33 | $1.33 |
| 100+ | $1.16 | $1.16 |
| 500+ | $1.02 | $1.02 |
| 1,000+ | $0.88 | $0.88 |
| 2,000+ | $0.77 | $0.77 |
| 5,000+ | $0.70 | $0.70 |
| 10,000+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100").
5.7 A per pin when mated with SSW, with 2 positions powered.
550 VAC when mated with SSW.
Through hole.
-55°C to 125°C.
Gold flash on post, matte tin on tail.
