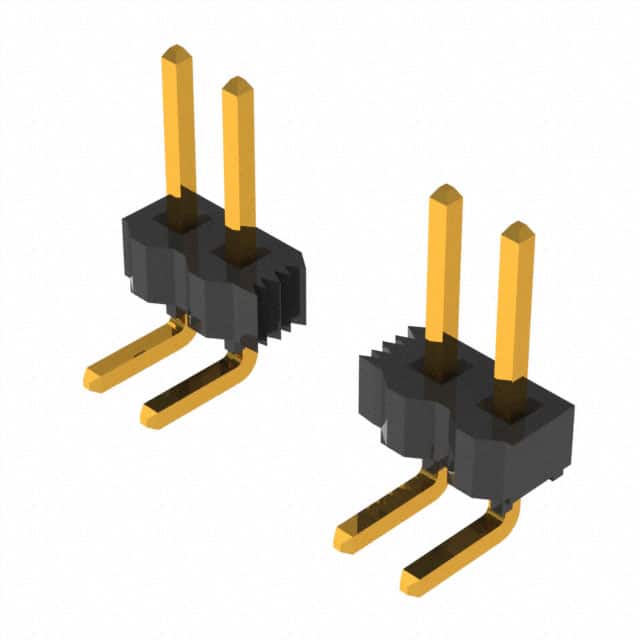

The TSW-108-08-G-S-RA is a through hole, right angle header from Samtec's TSW series. It features 8 positions in a single row with a 2.54mm (0.100") pitch, all positions loaded. The contacts are made of phosphor bronze with a 10µin gold finish over 50µin nickel, providing reliable performance in repeated mating cycles.
Electrical ratings include 5.7A per pin when mated with SSW socket strips, 6.3A with SSQ, and a voltage rating of 550VAC when mated with SSW. The operating temperature range is -55°C to 125°C with gold plating. The insulator is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating, suitable for applications requiring fire safety compliance.
This header is unshrouded and uses a push-pull fastening mechanism, making it suitable for both board-to-board and cable-to-board connections. It is sold in bulk packaging with a standard package quantity of 1. The right angle orientation allows for low-profile connections perpendicular to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.31 | $1.31 |
| 50+ | $1.21 | $1.21 |
| 100+ | $1.06 | $1.06 |
| 1,000+ | $0.79 | $0.79 |
| 2,000+ | $0.72 | $0.72 |
| 5,000+ | $0.64 | $0.64 |
| 10,000+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions in a single row, all positions loaded.
2.54mm (0.100").
Up to 5.7A per pin when mated with SSW socket strips, and 6.3A when mated with SSQ.
550VAC when mated with SSW.
Through hole, right angle.
-55°C to 125°C with gold plating.
