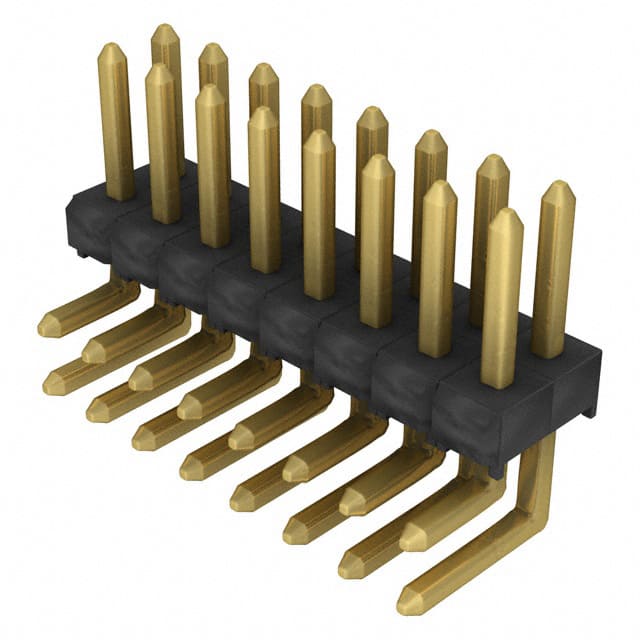

TSW-108-08-G-D-RA Samtec TSW-108-08-G-D-RA is a through-hole, right angle male header with 16 positions in 2 rows, 2.54mm pitch, gold flash plating, and UL94 V-0 insulation.
Mfr Part #:

TSW-108-08-G-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-108-08-G-D-RA is a through-hole, right angle male header with 16 positions in 2 rows, 2.54mm pitch, gold flash plating, and UL94 V-0 insulation.
✓ Total Stock: 5,537 pcs
$ Price Range: $1.62 - $2.73

TSW-108-08-G-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
5,537 pcs
On Request
5537 pcs On Request 1 On Request On Request 621 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-108-08-G-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

TSW-108-08-G-D-RA Description

Short technical summary and product information.

The Samtec TSW-108-08-G-D-RA is a 16-position, 2-row through-hole header with a right angle orientation. It features 0.025" square pins with 10µin gold flash over phosphor bronze, providing reliable connectivity. The pitch is 0.100" (2.54mm) with a row spacing of 0.100". The insulation is made of black PBT with UL94 V-0 flammability rating. This unshrouded header is suitable for board-to-board or cable applications. Operating temperature range is -55°C to 125°C. The termination is solder type with push-pull fastening.

TSW-108-08-G-D-RA Quick Information

Product Type: Through Hole Right Angle Header
Series: TSW
Canonical Name: Samtec TSW-108-08-G-D-RA .100in/2.54mm Through Hole Header, 16 Pin, 2 Row, Right Angle
Subcategory: Unshrouded Header

TSW-108-08-G-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-108-08-G-D-RA Estimated Pricing

Qty Low High
1+ $2.73 $2.73
50+ $2.70 $2.70
100+ $2.18 $2.18
500+ $2.08 $2.08
1,000+ $1.78 $1.78
2,000+ $1.77 $1.77
5,000+ $1.62 $1.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-108-08-G-D-RA Features

  • Right angle through-hole mounting orientation.
  • 16 positions in 2 rows at 2.54mm pitch.
  • Gold flash plated phosphor bronze contacts.
  • UL94 V-0 rated PBT insulation material.
  • Operating temperature range -55°C to 125°C.

TSW-108-08-G-D-RA Applications

  • Used in board-to-board stacking applications.
  • Suitable for cable-to-board connections.
  • Ideal for high-reliability industrial systems.

TSW-108-08-G-D-RA FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSW-108-08-G-D-RA have?

16 positions in 2 rows.

What is the pitch of this header?

2.54mm (0.100").

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Gold flash, 10µin (0.25µm).

What is the insulation material?

Polybutylene Terephthalate (PBT) with UL94 V-0 rating.

What is the fastening type?

Push-pull.
