Mfr Part #:

TSW-108-07-T-S

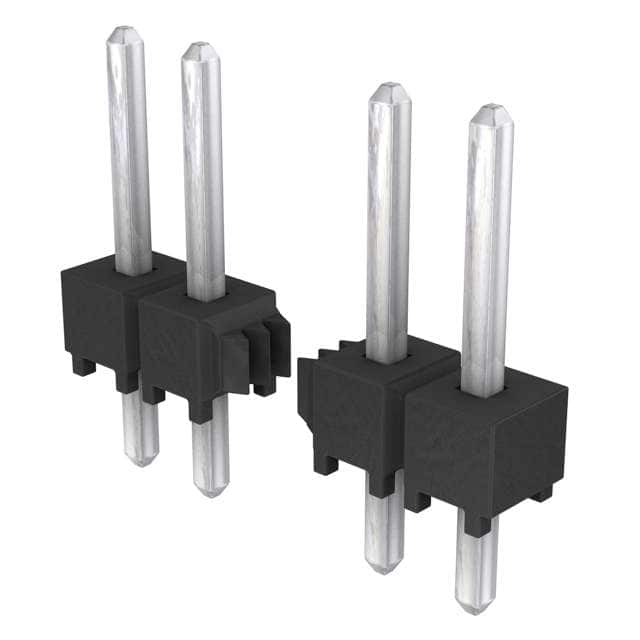

The TSW-108-07-T-S is a 8-position, single row, through-hole header from Samtec. It features a 2.54mm pitch, tin-plated phosphor bronze contacts, and is rated for 5.7A per pin and 550VAC.

✓ Total Stock: 3,750 pcs

$ Price Range: $0.20 - $0.58

TSW-108-07-T-S Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	3,566 pcs On Request	3566 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	184 pcs On Request	184 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TSW-108-07-T-S Description

Short technical summary and product information.

The Samtec TSW-108-07-T-S is a 8-position, single row, through-hole header from the TSW series. It features a 2.54mm (0.100") pitch and unshrouded design with male square pins. The insulator is made of black PBT with UL94 V-0 flammability rating.

The contacts are phosphor bronze with tin plating, rated for 5.7A per pin when mated with Samtec SSW socket strips. The voltage rating is 550 VAC mated with SSW. Operating temperature range is -55°C to +105°C for tin plating.

This header is suitable for board-to-board or cable-to-board applications. It is commonly used with Samtec SSW, SSQ, and other socket families. The through-hole termination allows for robust mechanical attachment. The unshrouded design provides easy access for probing or rework. Packaged in bulk.

TSW-108-07-T-S Quick Information

Product Type: Header, Male Pins

Series: TSW

Canonical Name: Samtec Inc. TSW-108-07-T-S - .100in/2.54mm Through Hole Header, 8 Pin, 1 Row, Tin, 0.230in Post, 0.430in OAL

Subcategory: Unshrouded Header

TSW-108-07-T-S Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

TSW-108-07-T-S Estimated Pricing

Qty	Low	High
1+	$0.58	$0.58
50+	$0.55	$0.55
100+	$0.48	$0.48
500+	$0.39	$0.39
1,000+	$0.30	$0.30
2,000+	$0.26	$0.26
5,000+	$0.20	$0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-108-07-T-S Features

8-position single row through-hole header.
2.54mm (0.100") pitch spacing.
Tin-plated phosphor bronze contacts.
Rated 5.7A per pin and 550VAC.
Unshrouded push-pull fastening type.

TSW-108-07-T-S Applications

Board-to-board interconnection in PCB assemblies.
Cable-to-board connections with IDC socket assemblies.
Prototyping and test fixtures requiring headers.
General purpose signal interconnects in electronic devices.

TSW-108-07-T-S FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TSW-108-07-T-S have?

It has 8 positions in a single row.

What is the pitch of this header?

2.54mm (0.100")

What is the current rating of the TSW-108-07-T-S?

5.7A per pin when mated with Samtec SSW socket strips.

What is the voltage rating?

550 VAC when mated with SSW.

What is the mounting type?

Through-hole.

What is the operating temperature range?

-55°C to +105°C for tin plating.

What is the insulation material and flammability rating?

Black PBT with UL94 V-0 rating.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Style	Straight
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-55°C ~ 105°C
Overall Contact Length	0.430" (10.92mm)
Pitch	2.54mm (0.100")
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
