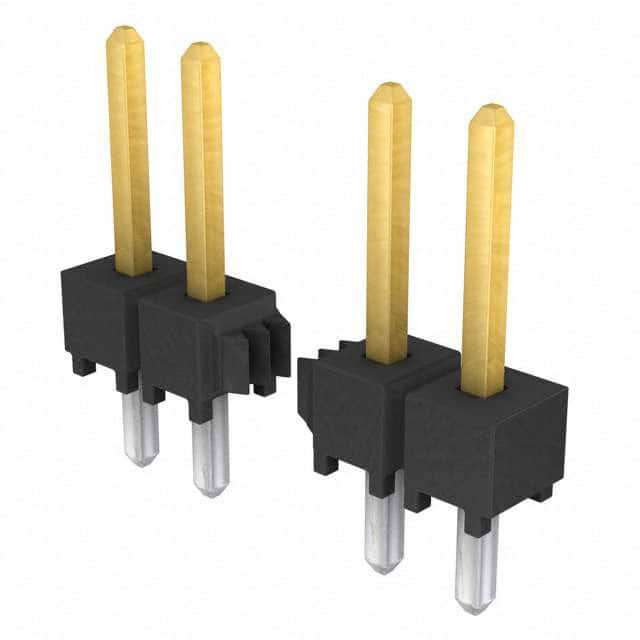

The Samtec TSW-108-07-S-S is a single-row unshrouded header from the TSW series, offering 8 positions at a 2.54mm (0.100") pitch. It features through-hole mounting with solder termination and a push-pull fastening mechanism. The header is constructed with a PBT (Polybutylene Terephthalate) insulator rated UL94 V-0 and tin-plated phosphor bronze contacts with a thickness of 30.0µin (0.76µm). The overall contact length is 10.92mm (0.430") with a post length of 5.84mm (0.230").
Electrically, the TSW-108-07-S-S is rated for 5.7A per pin (2 positions powered) and 550VAC when mated with a Samtec SSW socket strip. The operating temperature range is -55°C to +125°C. The header is designed for board-to-board or cable-to-board applications and is compatible with Samtec socket strips such as SSW, SSQ, and ESW.
The part is supplied in bulk packaging. The insulation height is 2.54mm (0.100") and the header is available in black color. The contact shape is square, and the lead style is -07, which provides a 0.430" overall contact length.
