Mfr Part #:

TSW-108-07-G-T

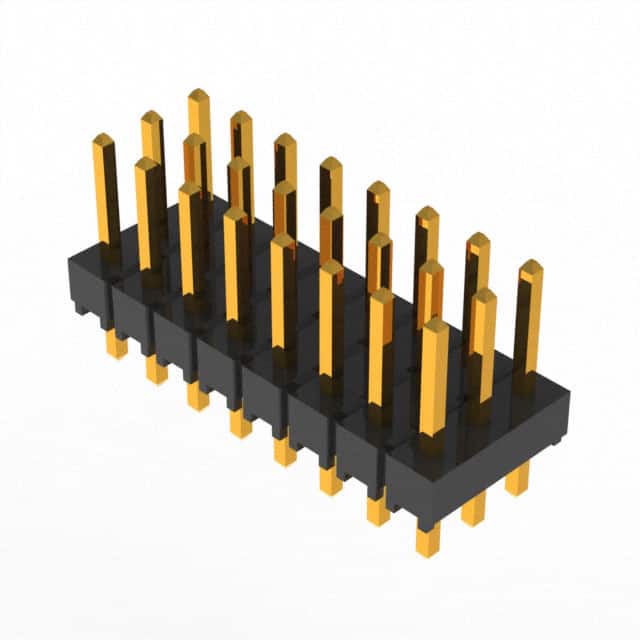

Samtec TSW-108-07-G-T is a 24-position, 3-row through-hole header with 2.54mm pitch and row spacing. It features gold-plated phosphor bronze contacts and black PBT insulation.

✓ Total Stock: 34 pcs

$ Price Range: $1.62 - $2.53

TSW-108-07-G-T Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	34 pcs On Request	34 pcs	On Request	1	On Request	On Request	NO DC	On Request	On Request

TSW-108-07-G-T Description

Short technical summary and product information.

The Samtec TSW-108-07-G-T is a 24-position, 3-row unshrouded through-hole header from the TSW series. It features a 2.54mm pitch and row spacing, making it suitable for board-to-board or cable applications.

The header uses square 0.025" (0.635mm) phosphor bronze pins with 10µin gold plating on the mating area. The mating post length is 5.84mm and overall contact length is 10.92mm. Insulation height is 2.54mm.

The black PBT insulator has a UL94 V-0 flammability rating. Operating temperature range is -55°C to 125°C. Termination is through-hole solder.

The component is supplied in bulk packaging. It mates with various Samtec socket strips like SSW, BCS, CES, and ESQ series.

TSW-108-07-G-T Quick Information

Product Type: Header, Male Pins

Series: TSW

Canonical Name: Samtec TSW-108-07-G-T - .100" (2.54mm) Through Hole Header, 24 Positions, 3 Rows, Gold Plating

Subcategory: Unshrouded Through-Hole Header

TSW-108-07-G-T Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

TSW-108-07-G-T Estimated Pricing

Qty	Low	High
1+	$2.53	$2.53
10+	$2.50	$2.50
50+	$2.20	$2.20
100+	$1.92	$1.92
500+	$1.66	$1.66
1,000+	$1.62	$1.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-108-07-G-T Features

24-position, 3-row through-hole header with 2.54mm pitch.
Gold-plated phosphor bronze contacts for reliable connectivity.
UL94 V-0 rated black PBT insulator for flame resistance.
Operating temperature range from -55°C to 125°C.
Bulks packaging for volume assembly.

TSW-108-07-G-T Applications

Ideal for board-to-board interconnections in industrial electronics.
Suitable for cable-to-board connections in prototyping.
Used in test and measurement equipment requiring reliable headers.
Compatible with various Samtec socket strips for modular designs.

TSW-108-07-G-T FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TSW-108-07-G-T have?

It has 24 positions arranged in 3 rows.

What is the pitch of this header?

The pitch is 2.54mm (0.100 inches) with the same row spacing.

What is the mounting type for this connector?

It is a through-hole mount connector with solder termination.

What contact finish is used?

The contacts have a 10µin (0.25µm) gold plating over phosphor bronze.

What is the operating temperature range?

It operates from -55°C to 125°C.

Is the header shrouded?

No, it is unshrouded with a push-pull fastening type.

What insulation material is used?

The insulator is black PBT with a UL94 V-0 flammability rating.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Style	Vertical
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	0.430" (10.92mm)
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
