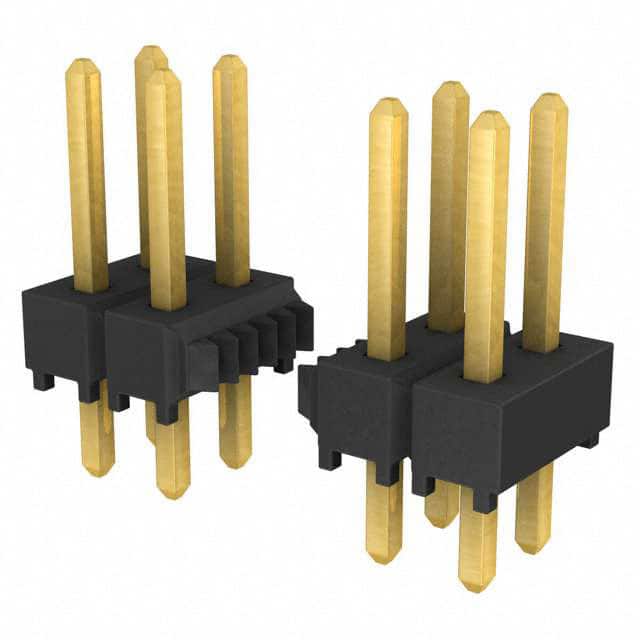

Samtec's TSW-108-07-G-D is a 16-position, 2-row unshrouded header featuring a 2.54mm (0.100") pitch and through hole solder termination. The male pins are made of phosphor bronze with 10µin (0.25µm) gold plating, ensuring reliable signal integrity and corrosion resistance. The overall contact length measures 10.92mm (0.430") with a 5.84mm (0.230") mating post length. The insulation is black PBT material with a UL94 V-0 flammability rating, and the operating temperature range is -55°C to 125°C.
This connector is ideal for board-to-board or cable-to-board interconnects in various electronic assemblies. The push-pull fastening type and square contact geometry provide secure mating and consistent performance. The part is packaged in bulk and comes fully loaded with all 16 positions.
Designers can leverage the TSW series' flexibility with multiple plating options and pin configurations, making it suitable for prototyping and production. For mating, Samtec recommends socket strips such as the SSW, BCS, or ESQ series for vertical or right-angle connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.27 | $1.27 |
| 250+ | $1.21 | $1.21 |
| 500+ | $0.93 | $0.93 |
| 1,000+ | $0.91 | $0.91 |
| 2,500+ | $0.82 | $0.82 |
| 10,000+ | $0.80 | $0.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TSW-108-07-G-D has 16 positions arranged in 2 rows.
The pitch is 2.54mm (0.100").
Through hole solder termination.
Gold plating, 10µin (0.25µm) thickness.
Black PBT with UL94 V-0 flammability rating.
-55°C to 125°C.
No, it is unshrouded.
