Mfr Part #:

TSW-106-17-G-D

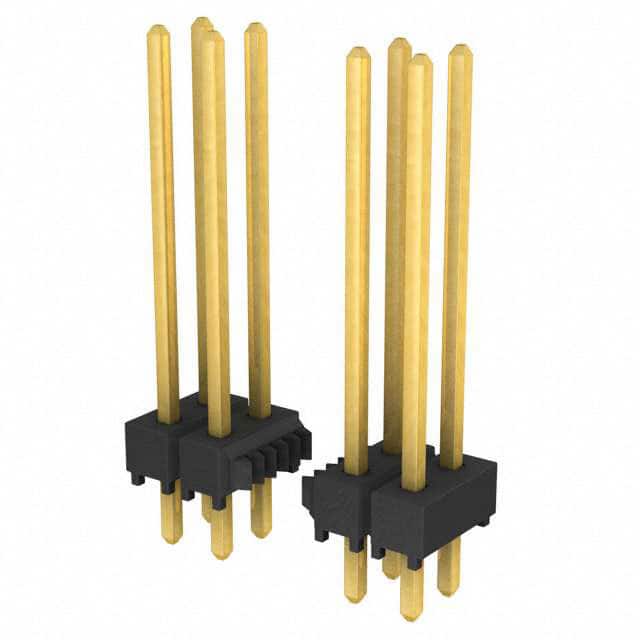

Samtec TSW-106-17-G-D is a 12-position, 2-row, through hole header with 2.54mm pitch and gold contact finish. It features an unshrouded design with push-pull fastening and a 0.830in overall contact length.

✓ Total Stock: 5 pcs

$ Price Range: $0.99 - $2.23

TSW-106-17-G-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	5 pcs On Request	5 pcs	On Request	1	On Request	On Request	2026-02-25 06:16:38	On Request	On Request

TSW-106-17-G-D Description

Short technical summary and product information.

The Samtec TSW-106-17-G-D is a 12-position, 2-row through hole header from the TSW series, designed for board-to-board or cable applications. It features a 2.54mm (0.100in) pitch and row spacing, with male square pins made of phosphor bronze and a gold contact finish of 10.0µin (0.25µm). The insulation is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating.

The header has an unshrouded design with push-pull fastening and a straight lead style. The contact length is 15.75mm (0.620in) and the overall contact length is 21.08mm (0.830in). It is rated for an operating temperature range of -55°C to 125°C. The component is packaged in bulk and is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).

TSW-106-17-G-D Quick Information

Product Type: Header, Male Pins

Series: TSW

Canonical Name: Samtec TSW-106-17-G-D .100in/2.54mm Through Hole Header, 12 Position, 2 Row, Gold

Subcategory: Unshrouded Header

TSW-106-17-G-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

TSW-106-17-G-D Estimated Pricing

Qty	Low	High
1+	$2.23	$2.23
50+	$2.16	$2.16
100+	$1.84	$1.84
500+	$1.56	$1.56
1,000+	$1.38	$1.38
2,000+	$1.25	$1.25
5,000+	$1.08	$1.08
10,000+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-106-17-G-D Features

12-position, 2-row through hole header.
2.54mm pitch and row spacing.
Gold contact finish of 10.0µin.
Unshrouded design with push-pull fastening.
Operating temperature range -55°C to 125°C.

TSW-106-17-G-D Applications

Board-to-board connections in electronic assemblies.
Cable-to-board interconnects in industrial equipment.
Prototyping and test fixtures requiring reliable headers.
General purpose signal interconnection in control systems.

TSW-106-17-G-D FAQs

6 frequently asked questions generated from this part’s specifications.

What is the pitch of the TSW-106-17-G-D header?

The pitch is 2.54mm (0.100in).

How many positions does the TSW-106-17-G-D have?

It has 12 positions arranged in 2 rows.

What is the mounting type of this header?

It is a through hole mounting header.

What is the contact finish on the TSW-106-17-G-D?

The contact finish is gold with a thickness of 10.0µin (0.25µm).

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

Is the TSW-106-17-G-D RoHS compliant?

It is listed as RoHS3 Compliant.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	15.75mm (0.620")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Spacing	2.54 mm
Lead Style	Straight
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	21.08mm (0.830")
Pitch	2.54mm (0.100")
Row Spacing	2.54mm (0.100")
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
