Mfr Part #:

TSW-106-08-T-S-RA

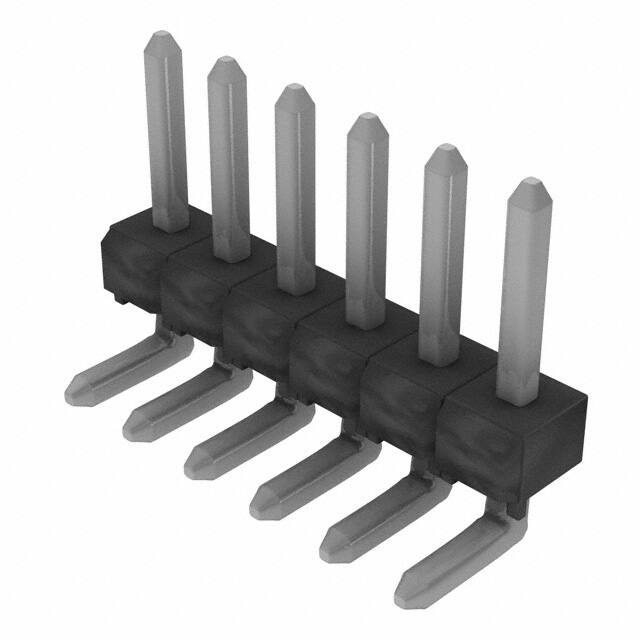

Samtec TSW-106-08-T-S-RA is a 6-position, single row, right angle through-hole pin header with a 2.54mm pitch. It features unshrouded tin-plated phosphor bronze contacts and a black PBT insulator.

✓ Total Stock: 98 pcs

$ Price Range: $0.20 - $0.62

TSW-106-08-T-S-RA Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	98 pcs On Request	98 pcs	On Request	1	On Request	On Request	NO DC	On Request	On Request

TSW-106-08-T-S-RA Description

Short technical summary and product information.

The Samtec TSW-106-08-T-S-RA is a 6-position, single row, right angle through-hole pin header from the TSW series. It features a 2.54mm (0.100") pitch and unshrouded design with male square pins. The contacts are made of phosphor bronze with a tin finish, providing reliable conductivity and solderability. The mating post length is 5.84mm (0.230") and the tail length is 2.286mm (0.090").

The insulator is molded from black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating, suitable for a wide range of environments. The operating temperature range is -55°C to 105°C. This connector is designed for board-to-board or cable-to-board interconnects, and the right-angle orientation allows for space-saving layouts on the PCB.

The part is supplied in bulk packaging. It is RoHS3 compliant (unverified) and REACH unaffected. For detailed electrical characteristics such as current and voltage ratings, consult the datasheet.

TSW-106-08-T-S-RA Quick Information

Product Type: Header, Male Pins

Series: TSW

Canonical Name: Samtec TSW-106-08-T-S-RA 6 Position Single Row Right Angle Pin Header, 2.54mm Pitch, Tin

Subcategory: Unshrouded Male Pin Header

TSW-106-08-T-S-RA Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

Lead Free: Yes

TSW-106-08-T-S-RA Estimated Pricing

Qty	Low	High
1+	$0.62	$0.62
50+	$0.59	$0.59
100+	$0.45	$0.45
500+	$0.39	$0.39
1,000+	$0.24	$0.24
2,000+	$0.22	$0.22
5,000+	$0.20	$0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-106-08-T-S-RA Features

6 positions, single row, 2.54mm pitch.
Right angle through-hole mounting.
Unshrouded header with tin-plated contacts.
Phosphor bronze square post contacts.
Operating temperature -55°C to 105°C.

TSW-106-08-T-S-RA Applications

Board-to-board interconnect in electronic assemblies.
Cable-to-board connections with mating sockets.
General purpose prototyping and production.

TSW-106-08-T-S-RA FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TSW-106-08-T-S-RA have?

6 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the mounting style of this connector?

Through hole, right angle.

What is the contact finish?

Tin.

What material are the contacts made of?

Phosphor bronze.

What is the fastening type?

Push-pull.

What is the operating temperature range?

-55°C to 105°C.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Length	5.84mm (0.230")
Contact Length - Post	2.286mm (0.090")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Size	0.635mm (0.025")
Contact Type	Male Pin
Failure Rate	TSW
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.02mm (0.119")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Spacing	2.54 mm
Lead Style	Through Hole
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6 positions
Number of Positions Loaded	All
Number of Rows	1 rows
Operating Temperature	-55°C ~ 105°C
Pitch	2.54mm (0.100")
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
