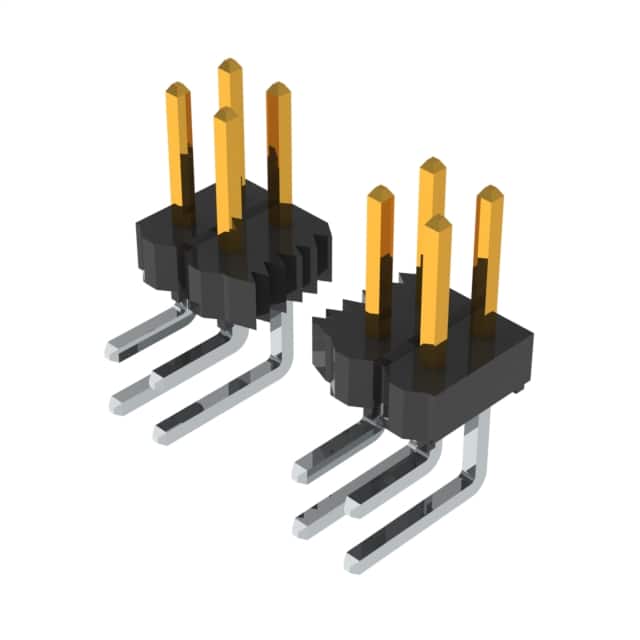

TSW-106-08-L-D-RA Samtec TSW-106-08-L-D-RA is a 12-position, 2-row, right angle through-hole header with 2.54mm pitch and tin-plated phosphor bronze contacts.
Mfr Part #:

TSW-106-08-L-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-106-08-L-D-RA is a 12-position, 2-row, right angle through-hole header with 2.54mm pitch and tin-plated phosphor bronze contacts.
✓ Total Stock: 98 pcs
$ Price Range: $0.41 - $1.11

TSW-106-08-L-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
HMB Electronics LLC ✓
Non-Authorised Inventory information
98 pcs
On Request
98 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-106-08-L-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

TSW-106-08-L-D-RA Description

Short technical summary and product information.

The Samtec TSW-106-08-L-D-RA is a 12-position, 2-row unshrouded header from the TSW series, designed for 0.100" (2.54mm) pitch applications. It features a right-angle through-hole mounting style with square male pins (0.025" square post) and tin plating over 50µ" nickel underplate. The insulator is black PBT with a UL94 V-0 flammability rating.



This header is rated for 5.7A per pin when mated with Samtec SSW socket strips (2 positions powered) and 550 VAC when mated with SSW. The operating temperature range is -55°C to +125°C. The contact length (post) is 5.84mm (0.230") and the tail length is 2.29mm (0.090").



The TSW series offers industry-leading design flexibility with numerous lead styles, plating options, and pin configurations. This part is suitable for board-to-board or cable-to-board interconnects and mates with Samtec socket strips such as SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, and SLW.

TSW-106-08-L-D-RA Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: Samtec TSW-106-08-L-D-RA .100" 2.54mm Right Angle Through-Hole Header, 12 Positions, 2 Rows, Tin Plating
Subcategory: Unshrouded Header

TSW-106-08-L-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected
Lead Free: No, Lead Wave Only

TSW-106-08-L-D-RA Estimated Pricing

Qty Low High
1+ $1.11 $1.11
50+ $1.07 $1.07
100+ $0.94 $0.94
500+ $0.85 $0.85
2,000+ $0.59 $0.59
5,000+ $0.50 $0.50
10,000+ $0.41 $0.41

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-106-08-L-D-RA Features

  • 12-position, 2-row right angle header.
  • 2.54mm pitch with 0.025" square posts.
  • Tin-plated phosphor bronze contacts.
  • Rated 5.7A per pin at 550 VAC.
  • Operating temperature -55°C to +125°C.

TSW-106-08-L-D-RA Applications

  • Board-to-board interconnect applications.
  • Cable-to-board connector systems.
  • General purpose signal interconnection.
  • Prototyping and test fixtures.

TSW-106-08-L-D-RA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the TSW-106-08-L-D-RA?

The pitch is 2.54mm (0.100").

What is the current rating of this header?

5.7A per pin when mated with SSW socket strip (2 positions powered).

What is the voltage rating?

550 VAC when mated with SSW socket strip.

What is the mounting type?

Through-hole, right angle.

How many positions does this connector have?

12 positions, all loaded, in 2 rows.

What is the operating temperature range?

-55°C to +125°C.

What is the contact material and finish?

Phosphor bronze contact with tin finish (10µin / 0.25µm).
