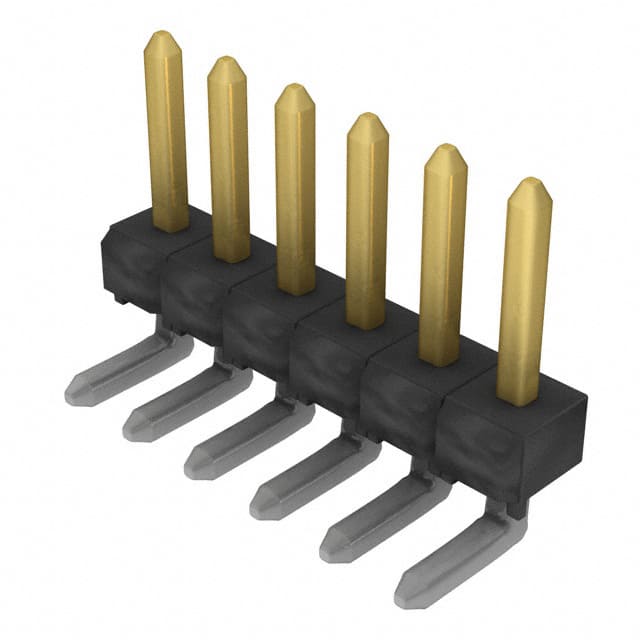

TSW-106-08-F-S-RA Samtec TSW-106-08-F-S-RA is a 6 position, single row, through hole right angle header with 2.54mm pitch, tin plated phosphor bronze contacts, and a black PBT insulator.
Mfr Part #:

TSW-106-08-F-S-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-106-08-F-S-RA is a 6 position, single row, through hole right angle header with 2.54mm pitch, tin plated phosphor bronze contacts, and a black PBT insulator.
✓ Total Stock: 692 pcs
$ Price Range: $0.18 - $0.53

TSW-106-08-F-S-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
692 pcs
On Request
692 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-106-08-F-S-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

TSW-106-08-F-S-RA Description

Short technical summary and product information.

The Samtec TSW-106-08-F-S-RA is a 6-position, single row, through hole right angle header from the TSW series. It features a 2.54mm (0.100") pitch and unshrouded male square pins with tin plating over 50µ" nickel underplate. The contact material is phosphor bronze, and the insulator is black PBT rated UL94 V-0.



This header is designed for board-to-board or cable applications and mates with Samtec SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, and SLW socket strips. When mated with SSW series, it is rated for 5.7A per pin (2 positions powered) and 550 VAC. The operating temperature range is -55°C to +125°C.



The right angle orientation allows for low-profile connections parallel to the PCB. The lead style -08 provides a post length of 5.84mm (0.230") and a tail length of 5.08mm (0.200"). Packaging is bulk.

TSW-106-08-F-S-RA Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: Samtec TSW-106-08-F-S-RA .100" (2.54mm) Pitch Through Hole Right Angle Header, 6 Positions, 1 Row, Tin Plated
Subcategory: Unshrouded Header

TSW-106-08-F-S-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected
Lead Free: TSW: No, Lead Wave Only

TSW-106-08-F-S-RA Estimated Pricing

Qty Low High
1+ $0.53 $0.53
50+ $0.44 $0.44
100+ $0.37 $0.37
500+ $0.30 $0.30
1,000+ $0.25 $0.25
2,000+ $0.22 $0.22
5,000+ $0.20 $0.20
10,000+ $0.18 $0.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-106-08-F-S-RA Features

  • 6 position single row right angle header.
  • 2.54mm (0.100") pitch unshrouded design.
  • Tin plated phosphor bronze square pins.
  • Rated 5.7A per pin and 550 VAC.
  • Black PBT insulator rated UL94 V-0.

TSW-106-08-F-S-RA Applications

  • Board-to-board stacking applications.
  • Cable-to-board interconnect systems.
  • General purpose signal routing on PCBs.
  • Prototyping and test fixture connections.

TSW-106-08-F-S-RA FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSW-106-08-F-S-RA have?

It has 6 positions in a single row, all positions loaded.

What is the pitch of this header?

The pitch is 2.54mm (0.100").

What is the current rating of the TSW-106-08-F-S-RA?

When mated with the SSW series, it is rated for 5.7A per pin with 2 positions powered.

What is the voltage rating?

When mated with the SSW series, the voltage rating is 550 VAC.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-55°C to +125°C.

What is the contact finish?

Tin plating over 50µ" nickel underplate.
