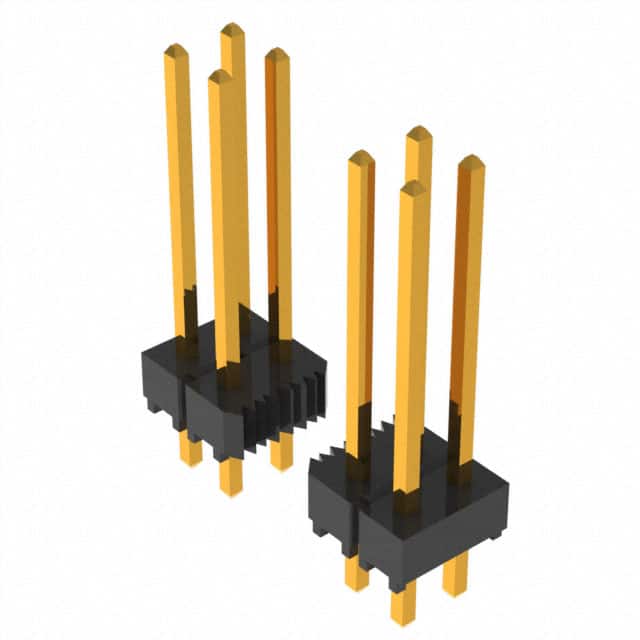

TSW-105-15-G-D TSW-105-15-G-D is a 10 position, 2 row, 2.54mm pitch through hole header from Samtec. It features gold plated male pins and an unshrouded design.
Mfr Part #:

TSW-105-15-G-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
TSW-105-15-G-D is a 10 position, 2 row, 2.54mm pitch through hole header from Samtec. It features gold plated male pins and an unshrouded design.
✓ Total Stock: 400 pcs
$ Price Range: $0.71 - $1.20

TSW-105-15-G-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
400 pcs
On Request
400 pcs On Request 1 On Request On Request 0414 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-105-15-G-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-105-15-G-D Description

Short technical summary and product information.

The TSW-105-15-G-D is a 10 position, 2 row, 2.54mm pitch through hole header from Samtec's TSW series. It features male pins with a square post of 0.025" (0.635mm) and gold contact finish of 10µin (0.25µm) over phosphor bronze contact material. The insulator is black polybutylene terephthalate (PBT) with a flammability rating of UL94 V-0.



This unshrouded header has a push-pull fastening type and is designed for board-to-board or cable applications. The mounting type is through hole with solder termination. The mating pin length is 13.21mm (0.520") and overall contact length is 18.54mm (0.730"). The insulation height is 2.54mm (0.100").



The operating temperature range is -55°C to 125°C. The part is supplied in bulk packaging. It is RoHS3 compliant, REACH unaffected, and has MSL 1 (unlimited) per the available data.

TSW-105-15-G-D Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: Samtec TSW-105-15-G-D — 10 Position 2.54mm Pitch Through Hole Header, Male Pins
Subcategory: Male Pins

TSW-105-15-G-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-105-15-G-D Estimated Pricing

Qty Low High
1+ $1.20 $1.20
100+ $1.08 $1.08
1,000+ $0.98 $0.98
2,000+ $0.88 $0.88
5,000+ $0.77 $0.77
10,000+ $0.71 $0.71

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-105-15-G-D Features

  • 10 position dual row header.
  • 2.54mm pitch for standard spacing.
  • Gold plated contacts for reliability.
  • Through hole solder termination.
  • Unshrouded design for flexibility.

TSW-105-15-G-D Applications

  • Board-to-board signal interconnection.
  • Cable-to-board wiring applications.
  • General purpose header applications.

TSW-105-15-G-D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

10 positions.

What is the pitch?

2.54mm (0.100").

What is the mounting type?

Through hole.

How many rows does it have?

2 rows.

What is the contact finish?

Gold, 10µin (0.25µm).

What is the operating temperature range?

-55°C to 125°C.

What is the flammability rating?

UL94 V-0.
