TSW-105-08-T-D The TSW-105-08-T-D is a 10-position, 2-row, 2.54mm pitch through hole header from Samtec with tin-plated phosphor bronze contacts and black PBT insulation rated UL94 V-0.
Mfr Part #:

TSW-105-08-T-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The TSW-105-08-T-D is a 10-position, 2-row, 2.54mm pitch through hole header from Samtec with tin-plated phosphor bronze contacts and black PBT insulation rated UL94 V-0.
✓ Total Stock: 230 pcs
$ Price Range: $0.28 - $0.68

TSW-105-08-T-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
230 pcs
On Request
230 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-105-08-T-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Orientation
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-105-08-T-D Description

Short technical summary and product information.

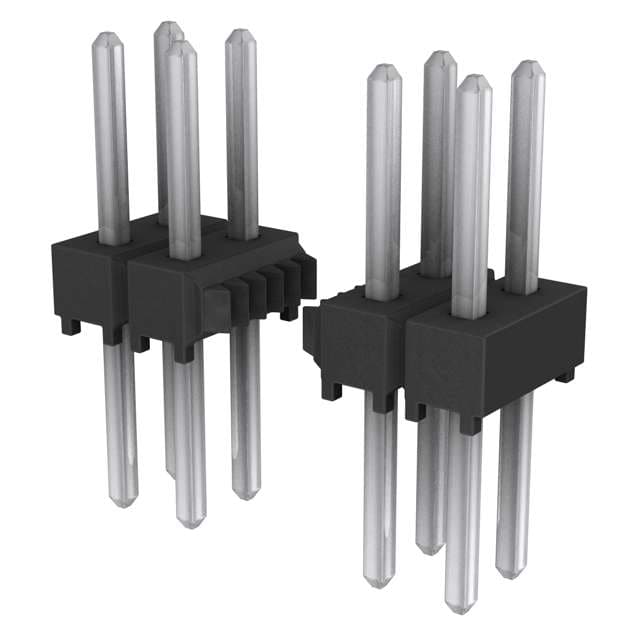

The Samtec TSW-105-08-T-D is a 10-position, 2-row through hole header from the TSW series, designed for standard 0.100" (2.54mm) pitch applications. It features a vertical orientation, unshrouded male pin contacts with a square 0.025" (0.635mm) post, and tin-plated phosphor bronze contacts for reliable solder termination.



The header is housed in a black polybutylene terephthalate (PBT) insulator with a UL94 V-0 flammability rating, ensuring safety in a wide range of environments. The operating temperature range spans -55°C to 105°C, making it suitable for both industrial and commercial applications.



With a mating contact length of 0.230" (5.84mm) and an overall contact length of 0.530" (13.46mm), this header accommodates board-to-board and cable interconnections. The push-pull fastening type and through hole mounting simplify assembly and provide secure connections. Packaging is bulk, and the part is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).

TSW-105-08-T-D Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: Samtec TSW-105-08-T-D 10 Position 2.54mm Pitch Through Hole Vertical Header, Tin Plating
Subcategory: Through Hole Male Pin Header

TSW-105-08-T-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-105-08-T-D Estimated Pricing

Qty Low High
1+ $0.68 $0.68
50+ $0.66 $0.66
100+ $0.54 $0.54
500+ $0.36 $0.36
1,000+ $0.35 $0.35
2,000+ $0.31 $0.31
5,000+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-105-08-T-D Features

  • 10-position, 2-row through hole header.
  • 2.54mm (0.100") pitch spacing.
  • Tin-plated phosphor bronze contacts.
  • Unshrouded, push-pull design.
  • UL94 V-0 rated PBT insulation.

TSW-105-08-T-D Applications

  • Board-to-board and cable interconnections.
  • General purpose signal routing in PCBs.
  • Suitable for wire-to-board applications.
  • Ideal for prototyping and production.

TSW-105-08-T-D FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSW-105-08-T-D have?

10 positions, all loaded.

What is the pitch of this header?

2.54mm (0.100").

What is the mounting type?

Through hole.

What is the operating temperature range?

-55°C to 105°C.

What is the contact material and finish?

Phosphor bronze contacts with tin plating.

What is the insulation material and flammability rating?

Polybutylene Terephthalate (PBT) with UL94 V-0 rating.
