Mfr Part #:

TSW-105-07-G-T

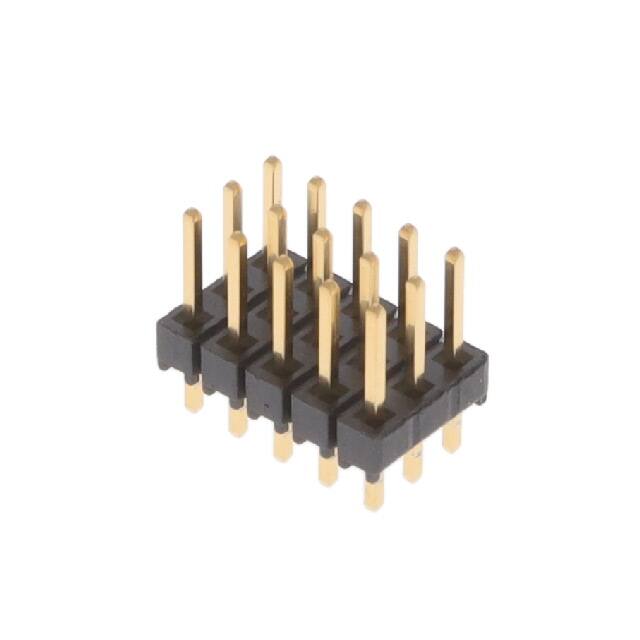

15-position, 3-row through-hole header with 2.54mm pitch. Features gold-plated phosphor bronze contacts and black PBT insulation.

✓ Total Stock: 218 pcs

$ Price Range: $1.00 - $1.58

TSW-105-07-G-T Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	143 pcs On Request	143 pcs	On Request	1	On Request	On Request	09+	On Request	On Request
Chanetech ✓ Non-Authorised Inventory information	75 pcs On Request	75 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TSW-105-07-G-T Description

Short technical summary and product information.

The Samtec TSW-105-07-G-T is a 15-position, 3-row through-hole header from the TSW series. It features a 2.54mm (0.100") pitch and row spacing, making it suitable for standard board-to-board and cable applications. The unshrouded header has square male pins with a gold contact finish of 0.25µm (10µin) over phosphor bronze base material.

The header is designed for through-hole mounting and solder termination. The insulation is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The mating contact length is 5.84mm (0.230") and overall contact length is 10.92mm (0.430"). The operating temperature range is -55°C to 125°C.

This component is ideal for applications requiring reliable interconnections in industrial, automotive, and consumer electronics. The push-pull fastening type allows easy mating and unmating. The TSW series offers design flexibility with various plating options and pin configurations.

TSW-105-07-G-T Quick Information

Product Type: Header, Male Pins

Series: TSW

Canonical Name: Samtec TSW-105-07-G-T 15 Position 2.54mm Pitch Through Hole Header, Male Pins

Subcategory: Male Pins

TSW-105-07-G-T Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

TSW-105-07-G-T Estimated Pricing

Qty	Low	High
1+	$1.58	$1.58
10+	$1.57	$1.57
50+	$1.38	$1.38
100+	$1.20	$1.20
250+	$1.19	$1.19
1,000+	$1.14	$1.14
2,000+	$1.00	$1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-105-07-G-T Features

15 positions in 3 rows with 2.54mm pitch.
Gold-plated phosphor bronze contacts for reliability.
Through-hole mounting with solder termination.
Black PBT insulation rated UL94 V-0.
Operating temperature range -55°C to 125°C.

TSW-105-07-G-T Applications

Used in board-to-board interconnections.
Suitable for cable-to-board applications.
Ideal for industrial control systems.
Applicable in automotive electronics.

TSW-105-07-G-T FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TSW-105-07-G-T have?

15 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the mounting type?

Through hole.

What is the contact material and finish?

Phosphor bronze with 0.25µm gold plating.

What is the operating temperature range?

-55°C to 125°C.

What is the insulation material and flammability rating?

Black PBT with UL94 V-0 rating.

Is this header shrouded or unshrouded?

Unshrouded.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	0.25µm (10.0µin)
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Spacing	2.54 mm
Lead Style	Vertical
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	10.92mm (0.430")
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
