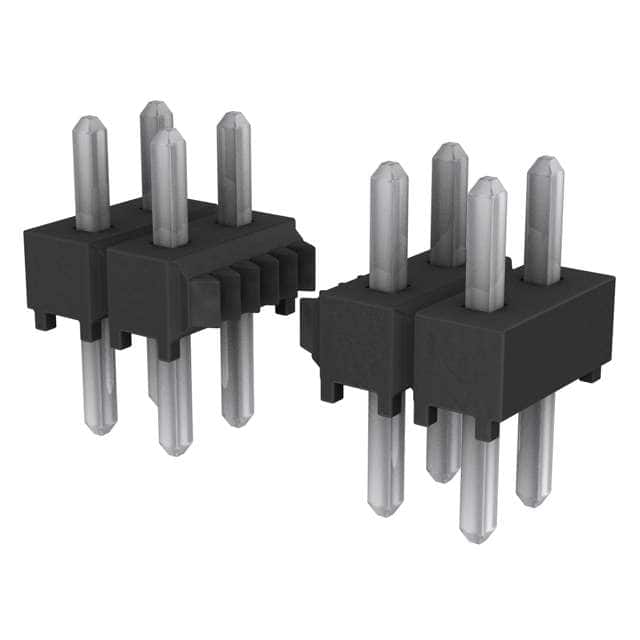

TSW-105-05-T-D Samtec TSW-105-05-T-D is a 10-position (2 rows) 2.54mm pitch unshrouded through-hole male pin header with tin plated phosphor bronze contacts.
Mfr Part #:

TSW-105-05-T-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-105-05-T-D is a 10-position (2 rows) 2.54mm pitch unshrouded through-hole male pin header with tin plated phosphor bronze contacts.
✓ Total Stock: 11 pcs
$ Price Range: $0.34 - $0.73

TSW-105-05-T-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-105-05-T-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-105-05-T-D Description

Short technical summary and product information.

The Samtec TSW-105-05-T-D is a through-hole unshrouded header from the TSW series, offering a 10-position, 2-row configuration on a standard 2.54mm pitch. It features square tin-plated phosphor bronze male pins with a contact length of 2.67mm and an overall contact length of 8.51mm.



The black PBT insulator (UL94 V-0 rated) has an insulation height of 2.54mm and uses a push-pull fastening type. This header is designed for board-to-board or cable applications and is RoHS3 and REACH compliant (unverified). It operates over a temperature range of -55°C to 105°C. The component is supplied in bulk packaging.

TSW-105-05-T-D Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: Samtec TSW-105-05-T-D 10-Position (2x5) 2.54mm Pitch Unshrouded Through-Hole Male Pin Header
Subcategory: Male Pins

TSW-105-05-T-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected
Lead Free: Yes

TSW-105-05-T-D Estimated Pricing

Qty Low High
1+ $0.73 $0.73
50+ $0.63 $0.63
100+ $0.62 $0.62
1,000+ $0.59 $0.59
2,000+ $0.34 $0.34
5,000+ $0.34 $0.34

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-105-05-T-D Features

  • 10-position (2x5) unshrouded male header.
  • 2.54mm pitch with 2.54mm row spacing.
  • Tin-plated phosphor bronze contacts.
  • UL94 V-0 rated black PBT insulator.
  • Through-hole solder termination, bulk packaging.

TSW-105-05-T-D Applications

  • Board-to-board interconnect applications.
  • Cable-to-board header connections.
  • Prototyping and general purpose PCB headers.
  • Low to moderate current signal interconnects.

TSW-105-05-T-D FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the TSW-105-05-T-D header have?

It has 10 positions arranged in 2 rows (5 per row).

What is the pitch of this header?

The pitch is 2.54mm (0.100") with the same 2.54mm row spacing.

What is the mounting type for this part?

It is a through-hole mount component with solder termination.

What is the operating temperature range?

It operates from -55°C to 105°C.

What contact material and finish are used?

The contacts are made of phosphor bronze with a tin plating.
